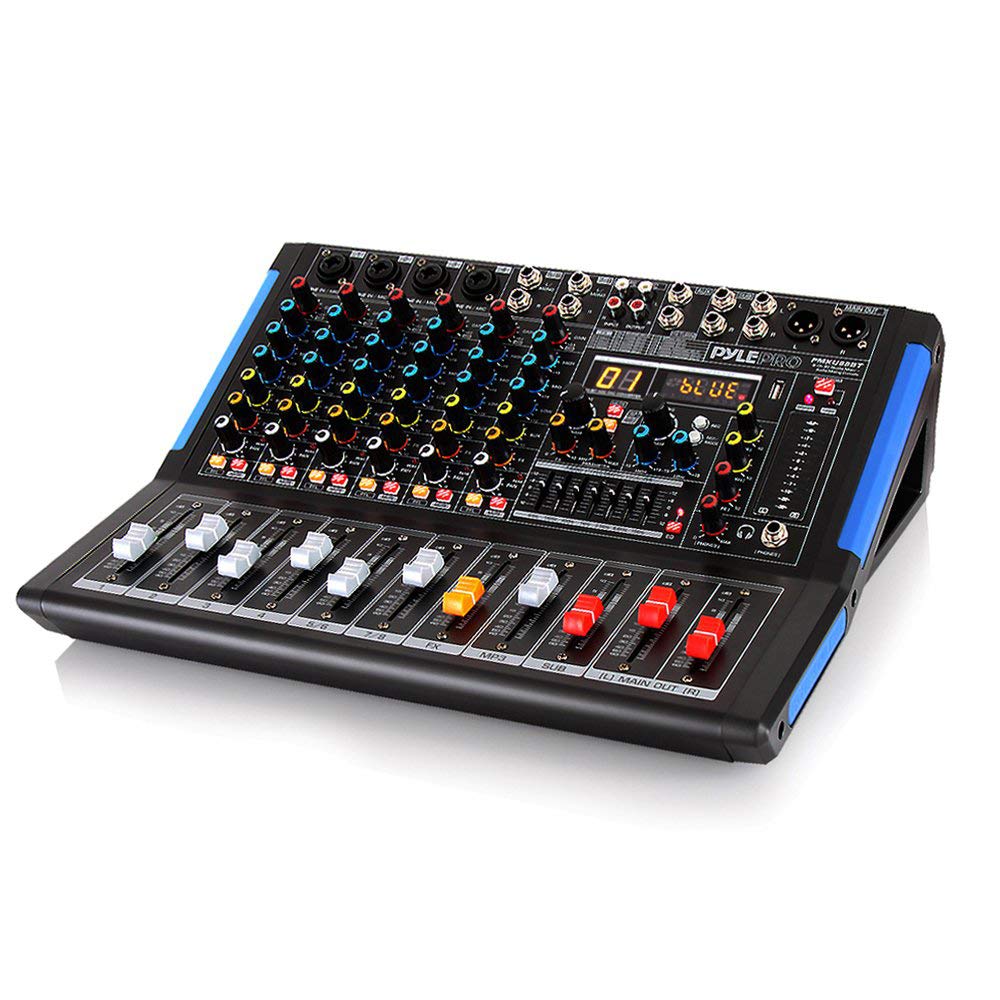

Pyle 8-Channel Bluetooth DJ Audio Mixer - Sound Controller w/ USB Drive for PC Recording - XLR Mic Input - 48V Power - 7-Band EQ - RCA I/O - DSP Processor for Professional & Beginners - PMXU88BT

• RECORD AND CONNECT TO PC: This personal mixer has a USB soundcard and audio interface to record and connect to PC and it has universal digital audio file compatibility. It can be used by beginners or studio professional applications
• BLUETOOTH: This portable 8-channel DJ sound controller has Bluetooth for wireless streaming and use it as an input to mix signal with other input channels. It works with iPhone, Android, iPad, Tablet and MP3 Player. The wireless range is 15 ft

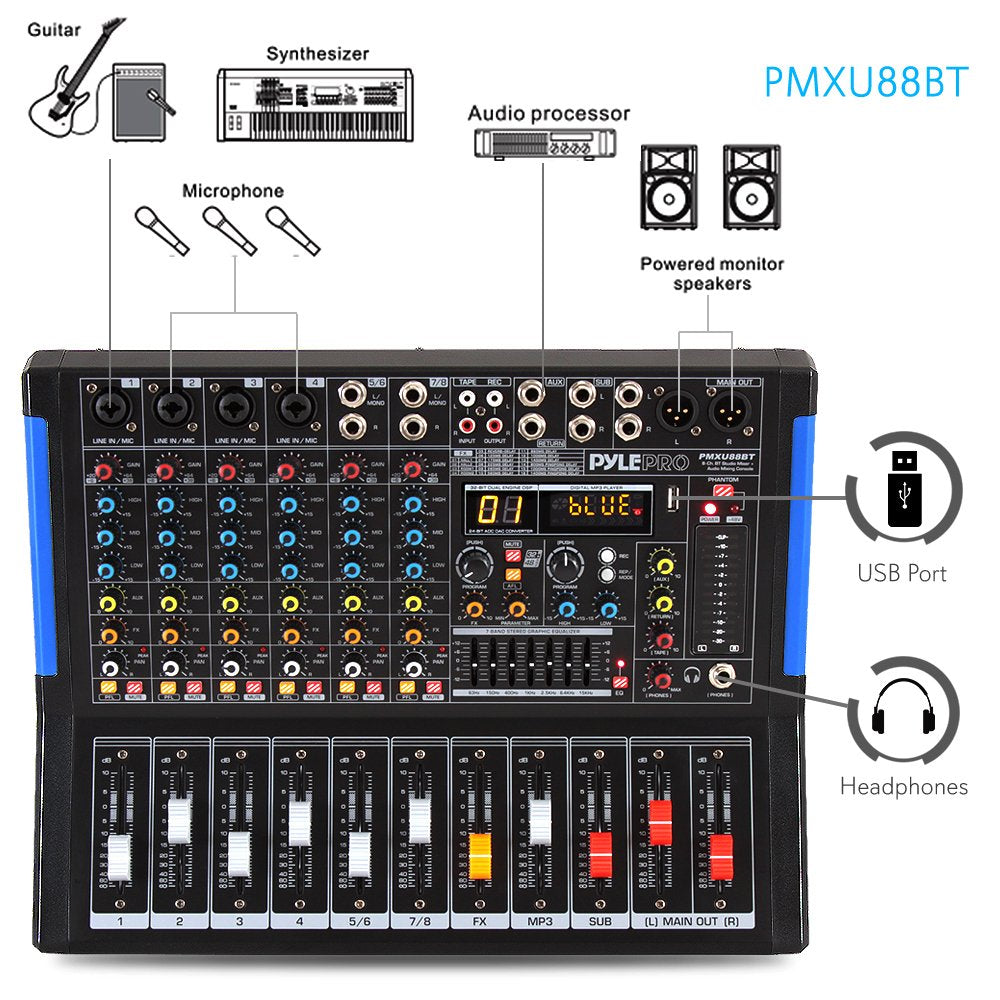

• 8-CHANNEL MIXER: The device caters multiple device connectivity because it has 8 channels. It has 2 1/4’’ (L/R) outputs, 4 XLR microphone inputs, 2 pairs RCA (L/R) inputs, 2 pairs 1/4’’ mono + stereo,1/4’’ Send + Return and 1/4’’ headphone jack
• LED INDICATOR LIGHTS: The recording mixer has LED indicator lights and rotary adjustment knobs for user convenience. It has input selection, master volume controls, independent channel balance and high, plus, low frequency adjustment
• #ERROR!

The Pyle 8-Ch. Bluetooth Studio Mixer - DJ Controller Audio Mixing Console System - DJ & Studio Console Mixer System - Multi 8-Channel Audio Source Mixing - Built-in Bluetooth Wireless Receiver - FX (Analog Effects) & 16 Bit DSP processor - Direct-to-Computer Connect & Sound Record Ability - 7-Band EQ - 32-Bit Dual Engine DSP - 24-Bit ADC DAC Converter - FX Configuration Adjustment Controls - Rotary Adjustment Knobs & LED Indicator Lights - MP3 Digital Audio File Compatibility - USB Flash Drive Reader - USB Port for Desktop Connection - Connect & Stream Audio from External Devices - (2) 1/4’’ (L/R) MAIN Outputs.

DETAILS

Features:

• DJ & Studio Console Mixer System
• Multi 8-Channel Audio Source Mixing
• Built-in Bluetooth Wireless Receiver
• FX (Analog Effects) & 16 Bit DSP processor
• Direct-to-Computer Connect & Sound Record Ability
• 7-Band EQ
• 32-Bit Dual Engine DSP
• 24-Bit ADC DAC Converter
• FX Configuration Adjustment Controls
• Rotary Adjustment Knobs & LED Indicator Lights
• MP3 Digital Audio File Compatibility

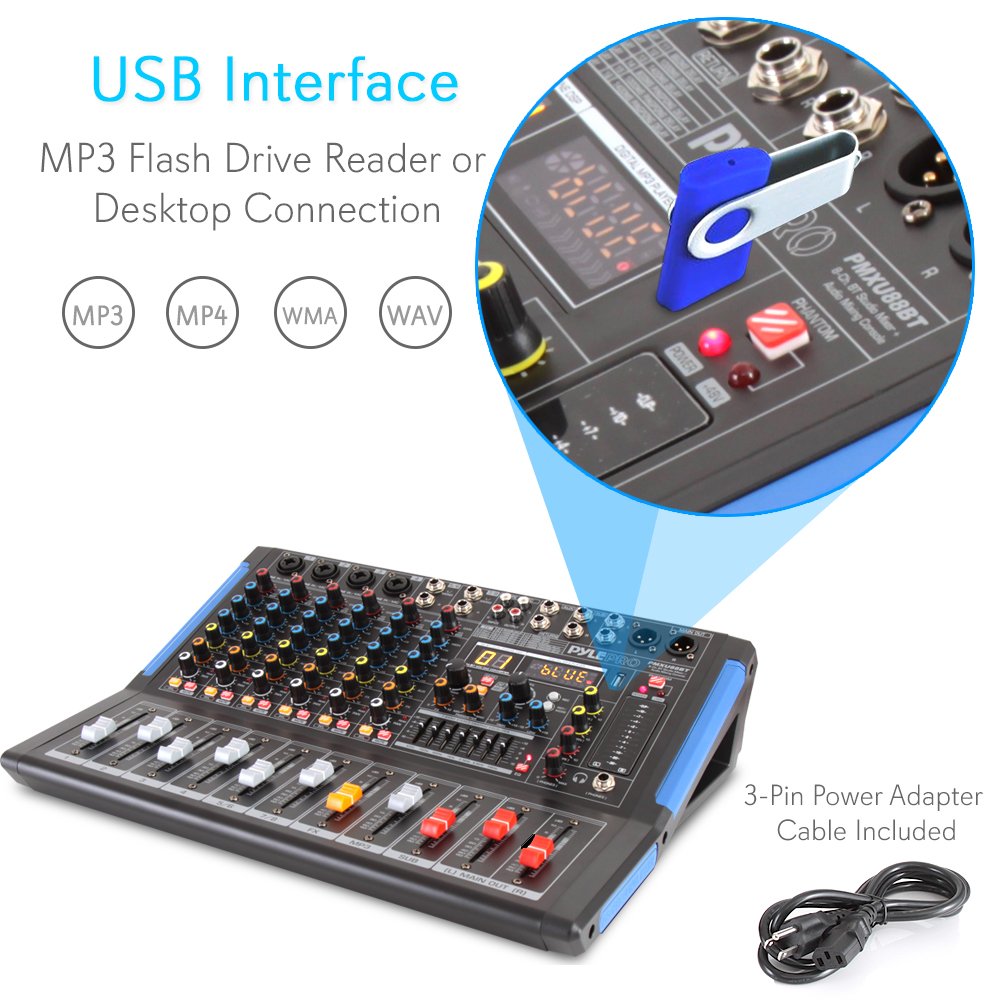

• USB Flash Drive Reader
• USB Port for Desktop Connection
• Connect & Stream Audio from External Devices
• (2) 1/4’’ (L/R) MAIN Outputs
• (4) XLR/14’’ Combo Audio LINE/Microphone Inputs
• (2) Pair RCA (L/R) Inputs
• (2) Pair 1/4’’ Mono + Stereo Inputs
• 1/4’’ Send + Return Inputs
• 1/4’’ Headphone Jack
• Stereo Level Fader/Slider
• Output Signal Level Indication
• BUS Audio Control Sound Routing
• PAD Channel Source Input Switch
• Independent Channel Input Audio Configuration
• Gain High Mid Low FX/Send Level Base + Tone Adjustment
• +48V Phantom Power Control
• Power ON/OFF Switch
• Used for Professional Studio Applications & On-Stage Performances

What’s in the Box:

• Bluetooth Studio Mixer
• Power Adapter Cable 3-Pin

Wireless Bluetooth Connectivity:

• Hassle-Free Audio Streaming Ability
• Works with All of Today’s Latest Devices
• (Smartphones Tablets Laptops Computers etc.)
• Bluetooth Network Name: ‘KG-08A’
• Bluetooth Version: 2.0
• Wireless Range: 15+’ ft

Technical Specs:

• Input Mixer Channels: 8-Ch. (+ FX/Headphones)
• Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
• Input Frequency Response: 20Hz-20kHz +/-3dB
• Input Distortion: 0.03% 1kHz/150mV Input
• Channel GAIN Adjustment: +20/+64 (-6/+38)
• HIGH Gain: +/-15 dB 12kHz Frequency Shelving
• MID Gain: +/-15 dB 2.5kHz Frequency Shelving
• LOW Gain: +/-15 dB 80kHz Frequency Shelving
• HIGH/MID/LOW Adjustment: -15/+15dB
• Stereo Output Level Meter: 12-Segment (-30 -20 -10 -7 -4 -2 0 +2 +4 +7 +10 CLIP)
• PAD Input Channel Adjustment: 26dB
• Peak CLIP Level: < 3dB
• Digital Audio File Compatibility File-Types: MP3 MP4 WMA WAV
• Phantom Power Voltage: +48V
• Power Supply: 100/240V (+/-15V DC Power Adapter)

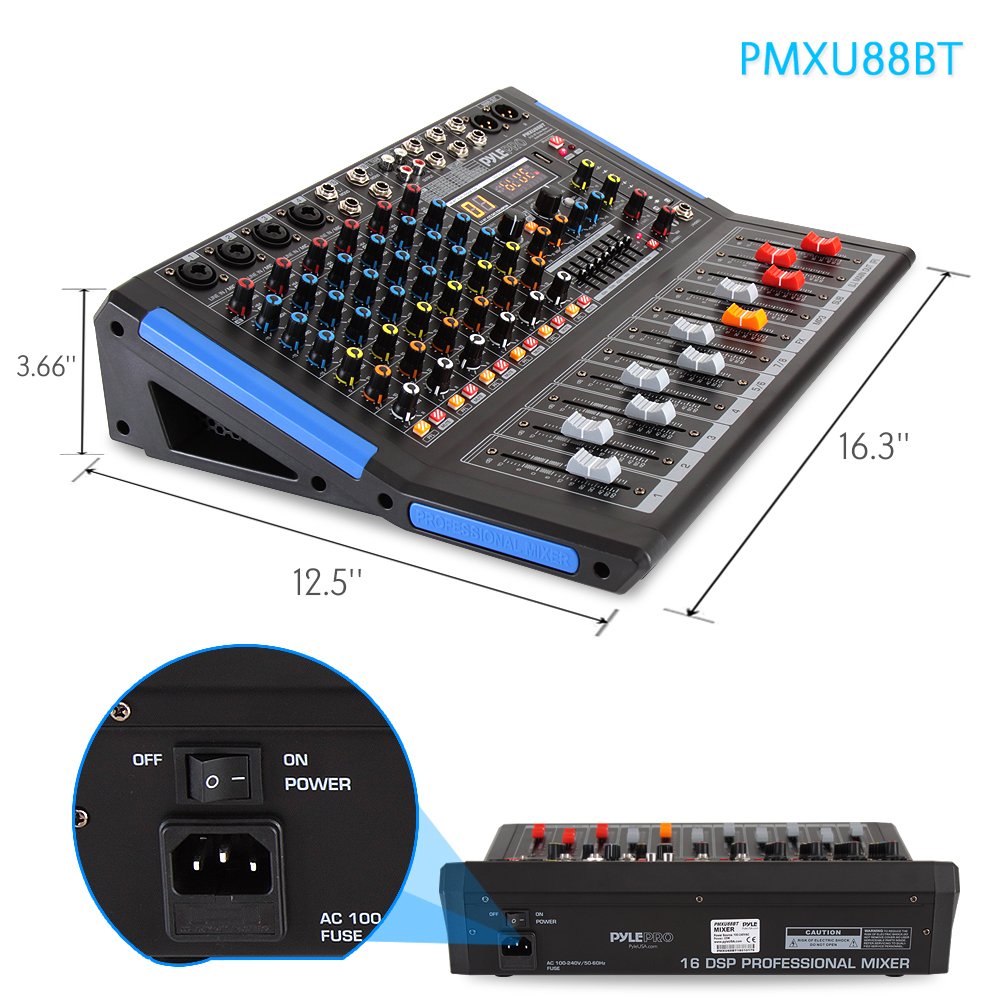

• Dimensions (L x W x H): 16.3’’ x 12.5’’ x 3.66’’ -inches

Whats In The Box

Bluetooth Studio Mixer

Power Adapter Cable 3-Pin
