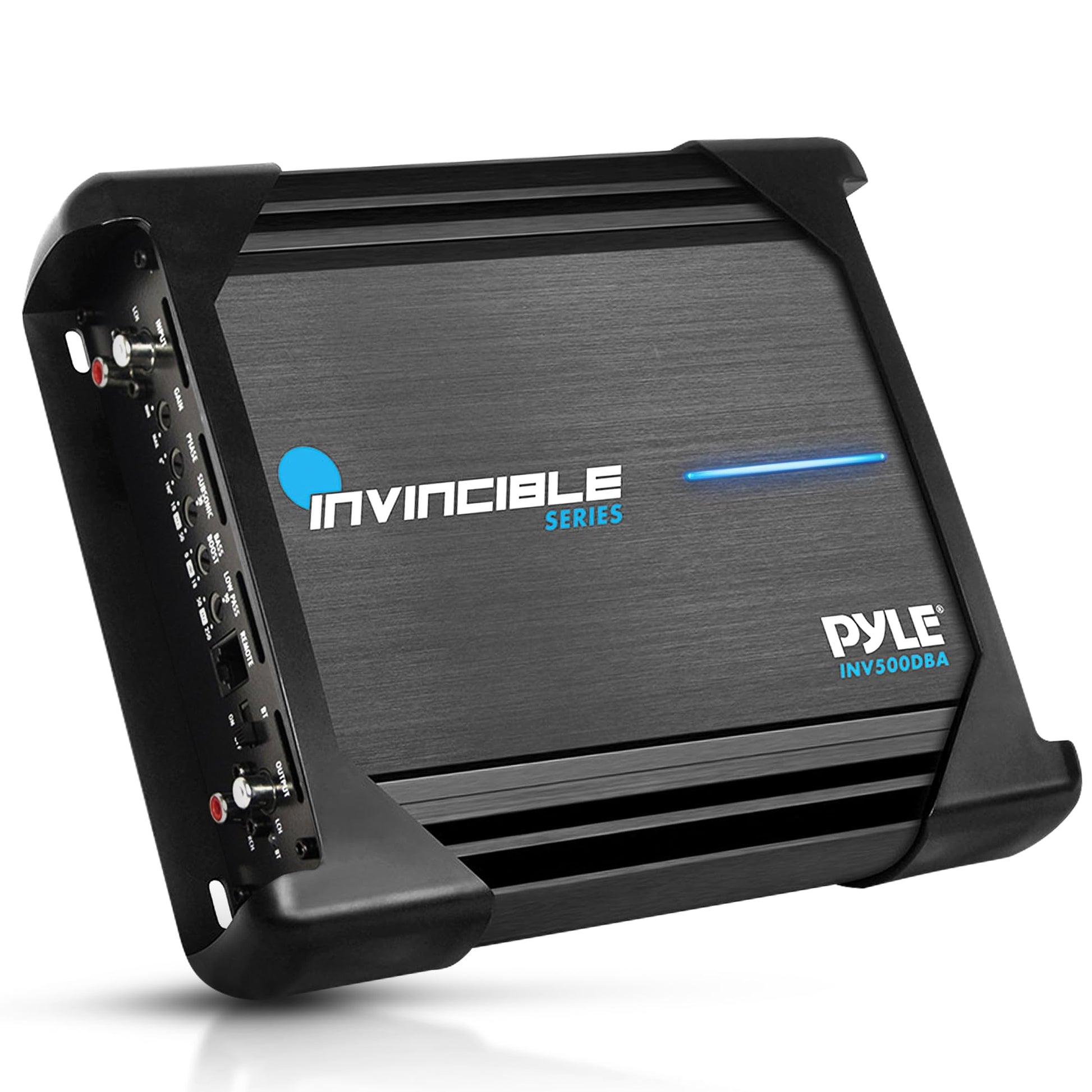

Pyle 9” Class D Mosfet Amplifier - Invincible Series Monoblock Amp, 1 Channel 1000 Watts Max, Mosfet PWM Power Supply, High-Current Dual Discrete Drive Stages, Wireless BT Audio Interface

• 1000 WATT MAX POWER: The 1000 watt 1 channel high power mosfet amplifier has a low filter, perfect for your stereo entertainment system. The Pyle Class AB Monoblock Amp also has a soft turn on/off to save energy & line output (L/R) Channels
• MOSFET PWM POWER SUPPLY: Pyle Mosfet Amplifier with an electronic crossover network and Mosfet PWM power supply that perfectly regulates the output voltage. Also equipped with wireless BT audio interface
• IDEAL FOR AUDIO ENTERTAINMENT: Featuring Pyle Mosfet Amplifier that pursue excellence with crispy and loud sound, this mono amp gives you that ideal entertainment system, perfect and ideal for studio and on stage performances
• SHORT CIRCUIT PROTECTION: Equipped with an advanced protection circuitry, power + protection LED Indicators and a custom terminal block for speaker protection from thermal/overload / short circuit conditions. Keeps amp safe & secure for long term use
• COMPACT AND LIGHTWEIGHT: The Pyle Class D Mosfet Amplifier is compact with an exact dimension of 9.21'' x 8.13'' x 2.28'' -inches and lightweight. It is also equipped with a PWM system with Chrome RCA inputs, and power speaker terminals

DETAILS

Features:

• Class “D” High-Current Dual Discrete Drive Stages
• Wireless Bluetooth Audio Interface
• Mosfet PWM Power Supply
• Electronic Crossover Network
• Low Pass Filter Controls

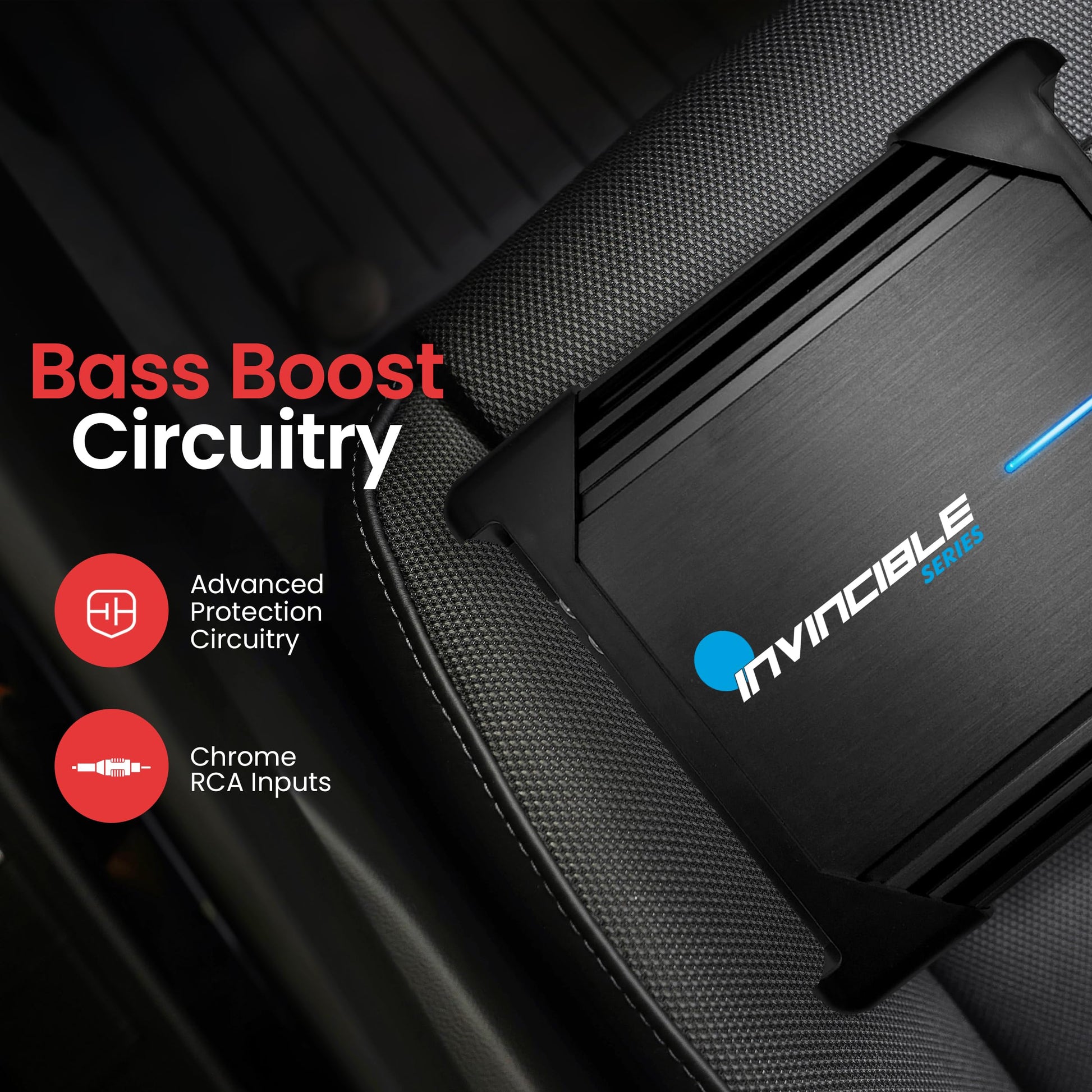

• Bass Boost Circuitry
• Subsonic Circuitry
• PHASE Circuitry
• Remote Control
• PWM (Pulse-Width-Modulation) System
• Glass Epoxy PCB
• Custom Terminal Block for Speaker Connection
• Thermal / Overload / Short Circuit Protection
• Soft Turn On/ Off
• Advanced Protection Circuitry
• Chrome RCA Inputs Power Speaker Terminals
• Line Output (L/R) Channels
• 5 Way Protections
• Power + Protection LED Indicators

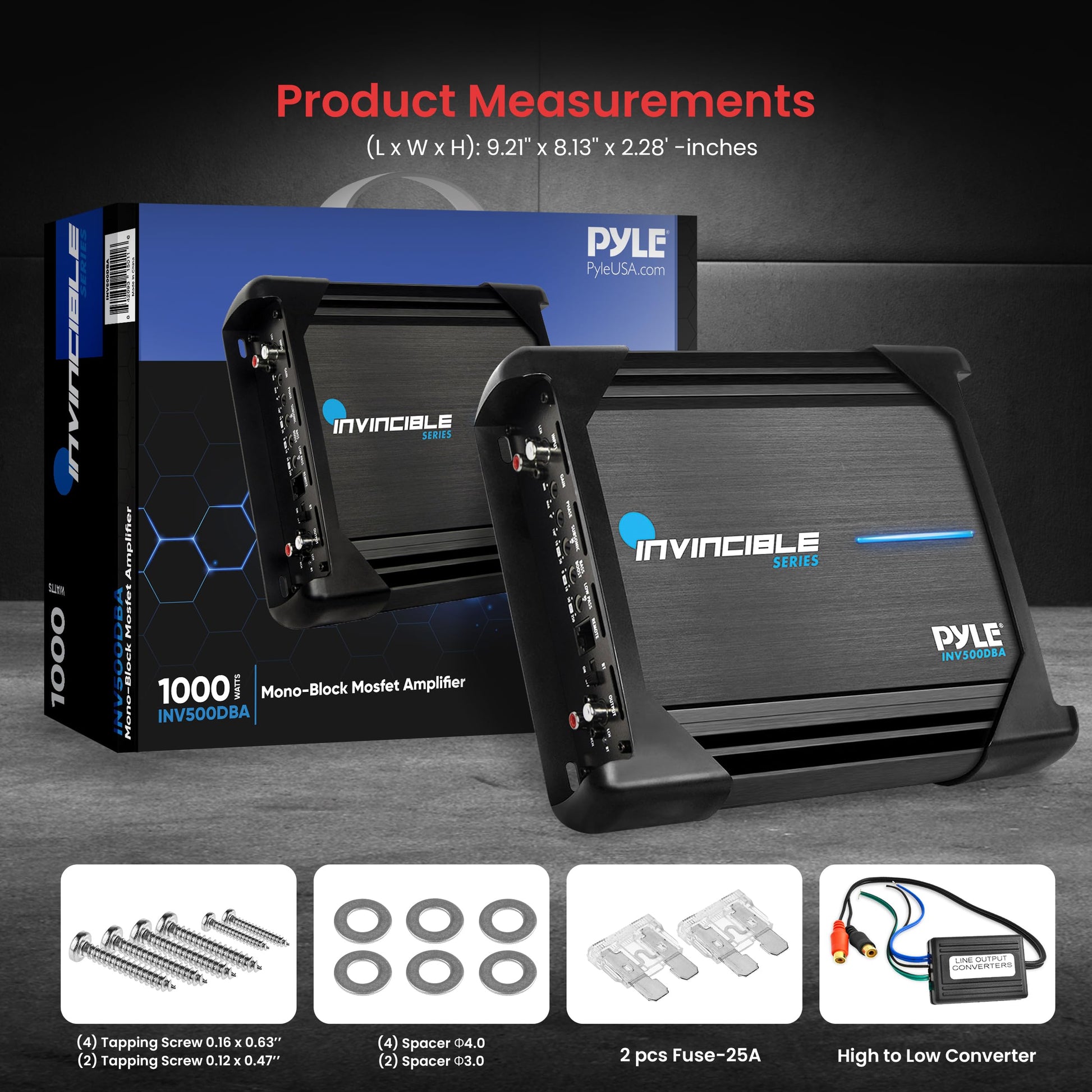

Whats in the Box:

• Invincible Series Amplifier
• High to Low Converter
• (4) Tapping Screw 0.16 x 0.63’’ -inches
• (2) Tapping Screw 0.12 x 0.47’’ -inches
• (4) Spacer Φ4.0
• (2) Spacer Φ3.0
• (2) Fuse-25A
• Remote Control
• Telephone Wire

Technical Specs:

• 1 x 200 Watt RMS @ 4 Ohm
• 1 x 350 Watt RMS @ 2 Ohm
• 1 x 500 Watt RMS @ 1 Ohm
• 1 x 1000 Watt MAX @ 1 Ohm
• Frequency Response 10 Hz-250Hz (±3dB)
• Output Power @ 14.4v DC 50Hz
• Input Impedance: 20K Ohms
• S/N Ratio: >90dB
• T.H.D.: <0.01%
• LPF Freq. Resp.: 50Hz - 250Hz
• Subsonic Freq. Resp.: 10Hz~50Hz
• Phase.:0 - 180°
• Bass Boost(50Hz): 0 - 18dB
• Input Sensitivity:0.2V~6V
• Fuse: 25A x2
• Product Dimensions (L x W x H): 9.21 x 8.13 x 2.28 -inches

Whats In The Box
