Pyle 18” Class AB Mosfet Amplifier - Invincible Series Bridgeable Amp, 5 Channel 3000 Watts Max, Mosfet PWM Power Supply, High-Current Dual Discrete Drive Stages, Wireless BT Audio Interface

• 3000 WATT MAX POWER: The 3000 watt 5 channel high power mosfet amplifier has a low/high pass filter, ideal for your stereo entertainment system. The Pyle Class AB Bridgeable Amp also has a soft turn on/off to save energy & line output (L/R) Channels
• MOSFET PWM POWER SUPPLY: Pyle Mosfet Amplifier with an electronic crossover network and Mosfet PWM power supply that perfectly regulates the output voltage. Also equipped with wireless BT audio interface
• IDEAL FOR AUDIO ENTERTAINMENT: Featuring Pyle Mosfet Amplifier that pursue excellence with crispy and loud sound, this amp gives you that ideal entertainment system, perfect and ideal for studio and on stage performances
• SHORT CIRCUIT PROTECTION: Equipped with an advanced protection circuitry, power + protection LED Indicators and a custom terminal block for speaker protection from thermal/overload / short circuit conditions. Keeps amp safe & secure for long term use
• COMPACT AND LIGHTWEIGHT: The Pyle Class AB Mosfet Amplifier is compact with an exact dimension of 18.5'' x 8.13'' x 2.28''-inches and lightweight. It is also equipped with a PWM system with Chrome RCA inputs, and power speaker terminals

DETAILS

Features:

• Class “AB” High-Current Dual Discrete Drive Stages
• Wireless Bluetooth Audio Interface
• Mosfet PWM Power Supply
• Electronic Crossover Network
• Low Pass Filter Controls
• High Pass Filter Controls

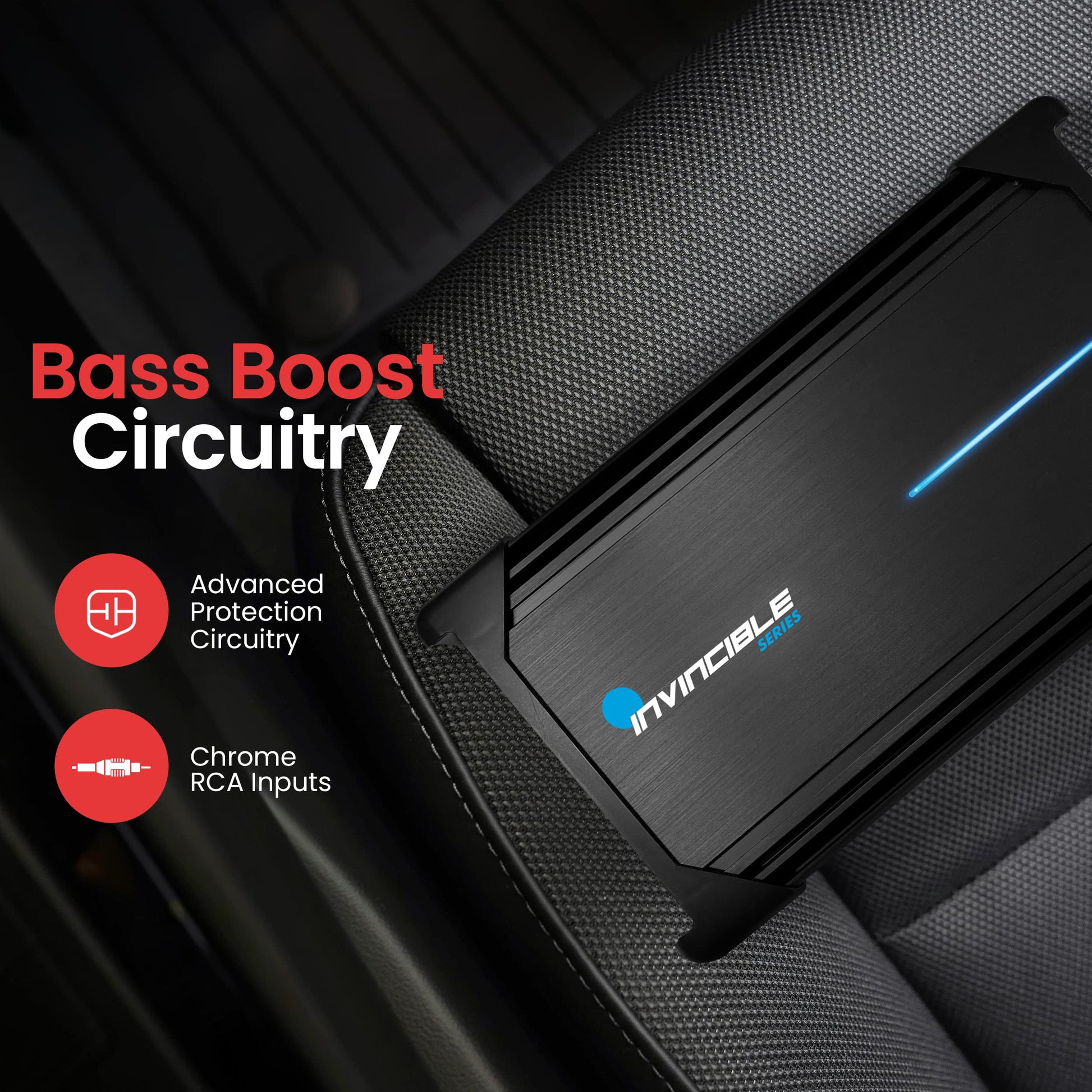

• Bass Boost Circuitry

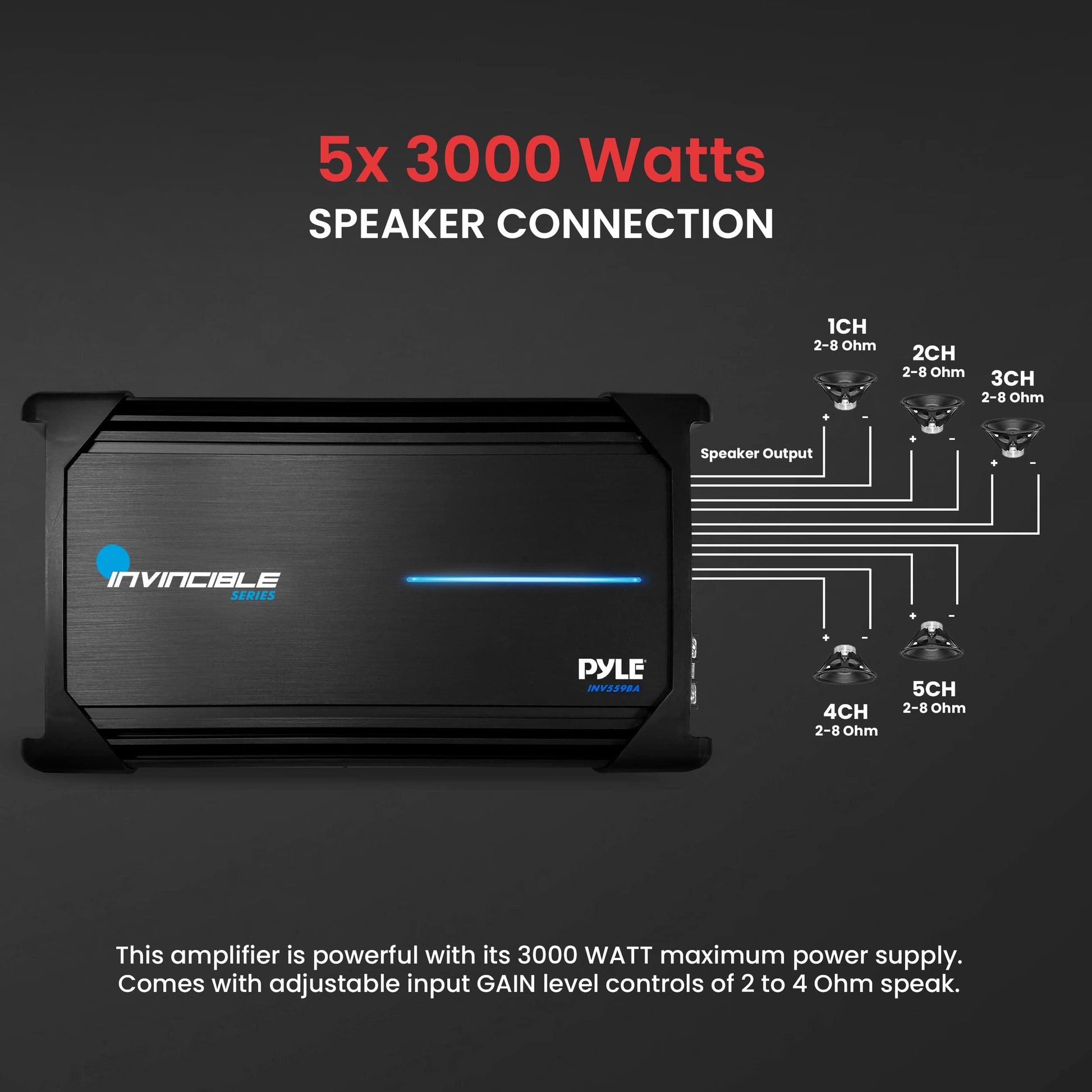

• 5 Channel Bridgeable MOSFET Amplifier
• 2 Ohm Stable
• PWM (Pulse-Width-Modulation) System
• Custom Terminal Block for Speaker Connection
• Thermal / Overload / Short Circuit Protection
• Soft Turn On/ Off
• Advanced Protection Circuitry

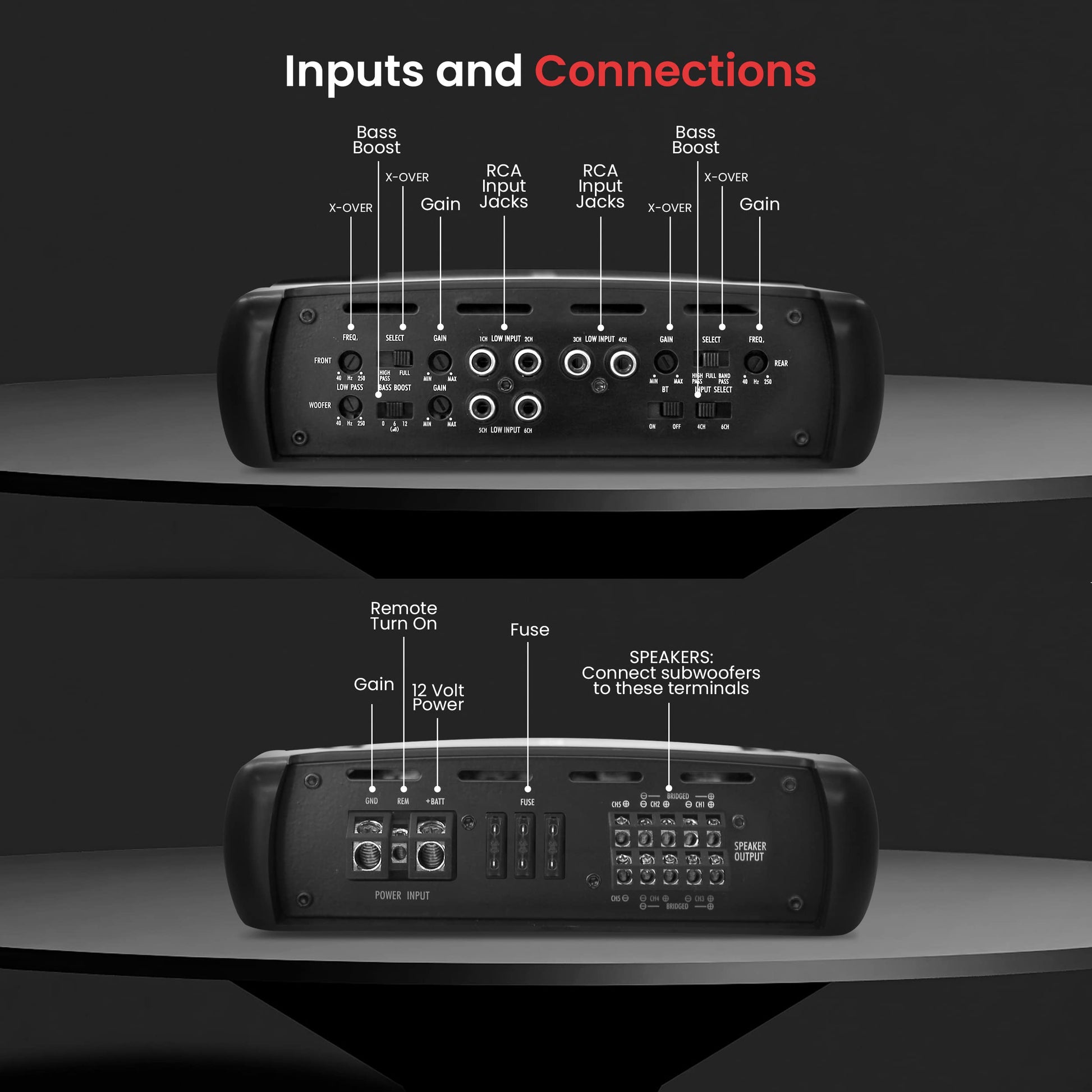

• Chrome RCA Inputs Power Speaker Terminals
• Line Output (L/R) Channels
• 5 Way Protections
• Power + Protection LED Indicators

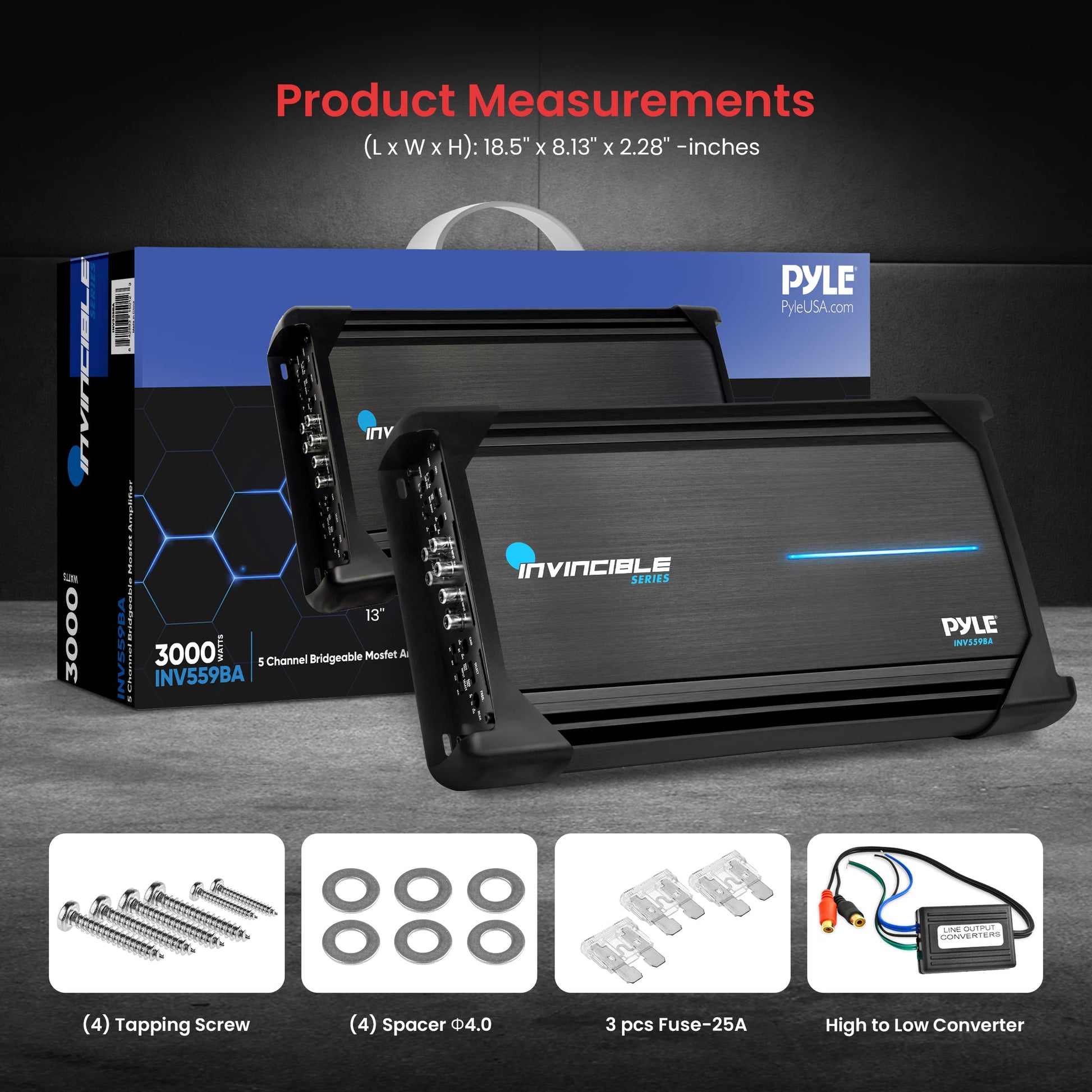

Whats in the Box:

• Invincible Series Amplifier
• High to Low Converter
• (4) Tapping Screw 0.16 x 0.63’’ -inches
• (4) Spacer Φ4.0
• (3) Fuse-30A

Technical Specs:

• 4 x 250 + 1 x 650W Watt RMS @ 4 Ohm
• 4 x 350 + 1 x 900W Watt Peak @ 4 Ohm
• 4 x 350 + 1 x 900W Watt RMS @ 2 Ohm
• 4 x 500 + 1 x 1200W Watt Max @ 2 Ohm
• Bridgeable Power @ 4 Ohms: 2 x 1000W
• Frequency Response 20 Hz-50kHz (±3dB)
• Output Power @ 14.4v DC 50Hz
• Input Impedance: 20K Ohms
• S/N Ratio: >90dB
• T.H.D.: <0.01%
• LPF Freq. Resp.: 40Hz - 250Hz
• HPF Freq. Resp.: 40Hz - 250Hz
• Bass Boost(50Hz): 0612dB
• Input Sensitivity:0.2V~6V
• Fuse: 30A x 3
• Product Dimensions (L x W x H): 18.5 x 8.13 x 2.28 -inches
