Pyle 2-Way Electronic Audio Crossover Network - Hi-Pass/Low-Pass 6dB/18dB Octave Slope - Power LED Indicator - 4 RCA Outputs - 2 RCA Inputs - Remote Subwoofer Control & Parallel Input Switch - PLXR2B

• ELECTRONIC CROSSOVER NETWORK: 2-Way Electronic Crossover with a 4 channel with a 4 channel RCA outputs and a 2 channel inputs is offering the same standard and performance of the electronic in a two way (high-pass / low-pass) configuration
• CROSSOVER PRODUCT DIMENSION: Our 2 way electronic crossover has a dimension of (L x W x H): 3.94'' x 6.18'' x 1.18'' -inches with an approximate weight of 1.32 lbs with a power LED indicator with a better slope design
• PRODUCT BUILT DESIGNATION: This product has a special and better crossover slope design power with a LED light making the product more attractive, and it is more convenient because of its dimension of (LxWxH):3.94''x6.18''x1.18 inches
• 2 WAY ELECTRIC VOLTAGE: An output voltage of 6V Max within the Separation of >60dB and an operating voltage of 11V-15.Low Pass of 18dB/oct continuously high Pass of 6dB or 18dB/oct together with a distortion of 0.05% THD at 1V output level
• WHAT YOU GET: By purchasing our product you will get the chance to get a power red wire with 1A Fuse with additional of a four Phillips-head Screws for electronic crossover and what is good about this product is it has a 1 year warranty

DETAILS

Features:

• 2-Way Electronic Crossover
• Compact Size
• High/Low Impedance Input

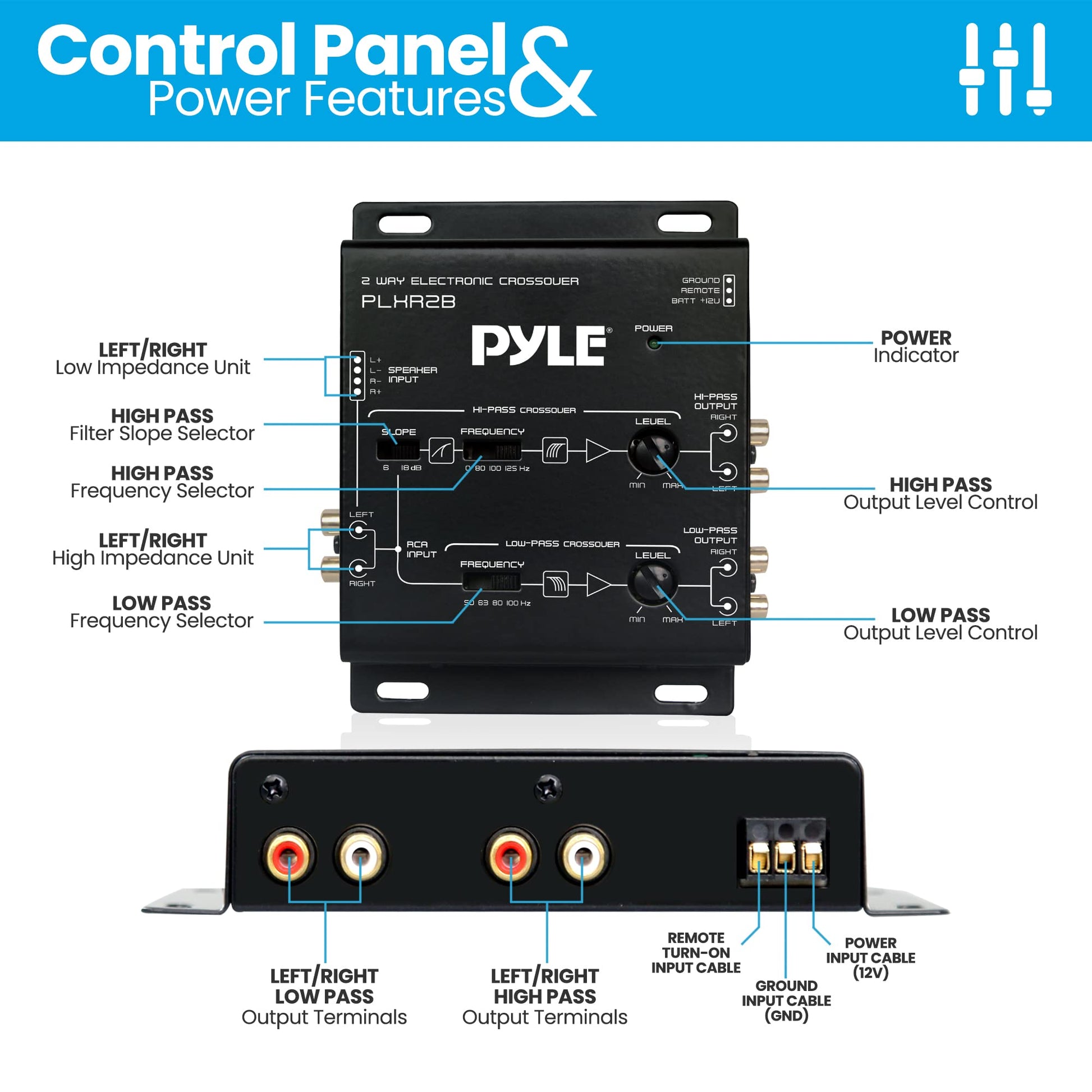

• Independent High-Pass/Low-Pass Output Level Controls
• Special and Better Crossover Slope Design
• 4-Channel RCA Outputs
• 2 Channel RCA Inputs
• Power on LED Indicator

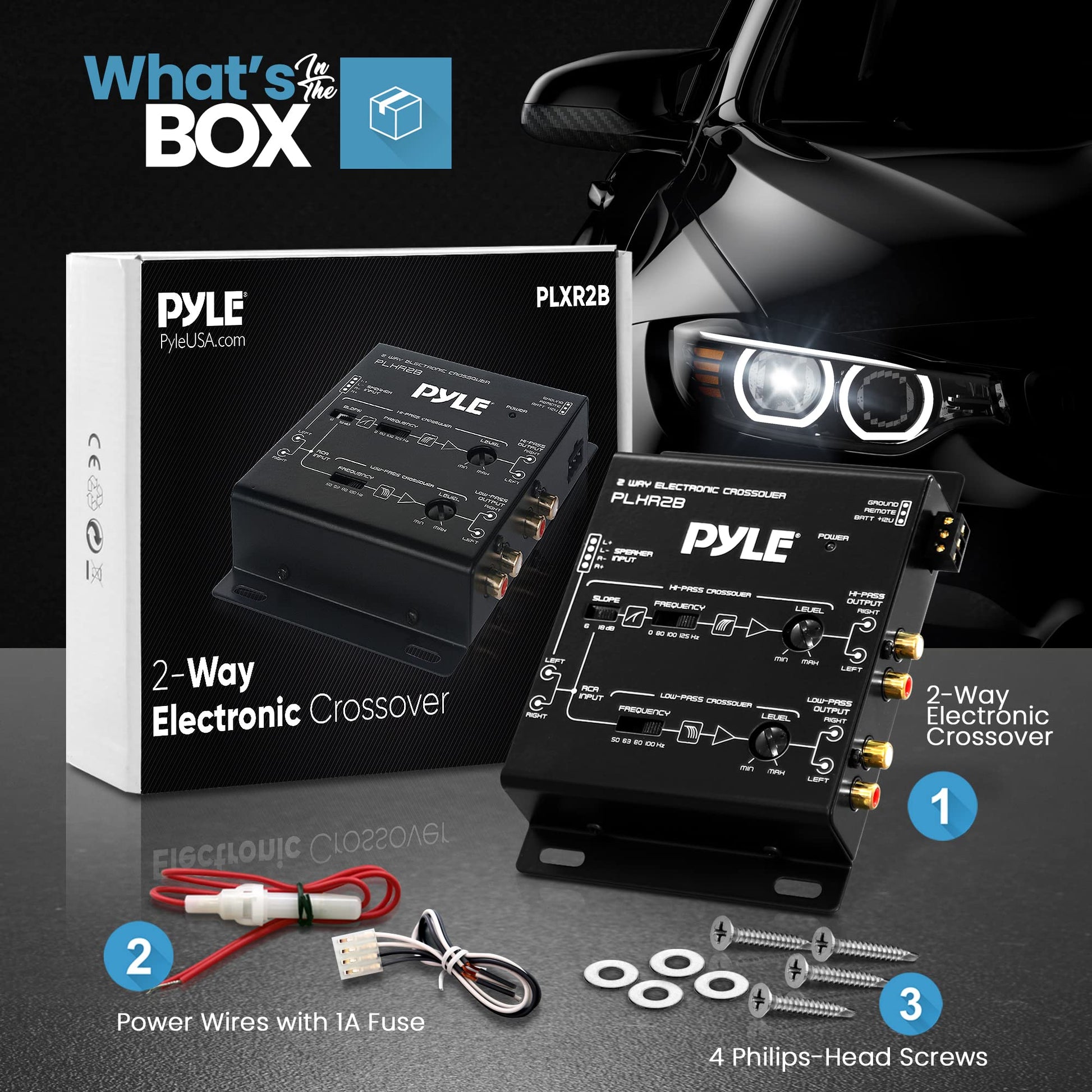

Whats in the Box:

• 2-Way Electronic Crossover
• Power Red Wire with 1A Fuse
• 4 Phillips-head Screws

Technical Specs:

• Hi-Pass Crossover: Full 80 100 120 Hz
• Low-Pass Crossover: 50 63 80 100 Hz
• Low Pass: 18dB/oct (3rd order Butterworth)
• High Pass: 6dB or 18dB/oct (3rd order Butterworth)
• Distortion: 0.05% THD at 1V output level
• S/N Ratio: 110dB
• Output Volt: 6V Max
• Separation: >60dB
• Frequency Response: 10 HZ~ 50 KHZ
• Voltage: 11V-15V

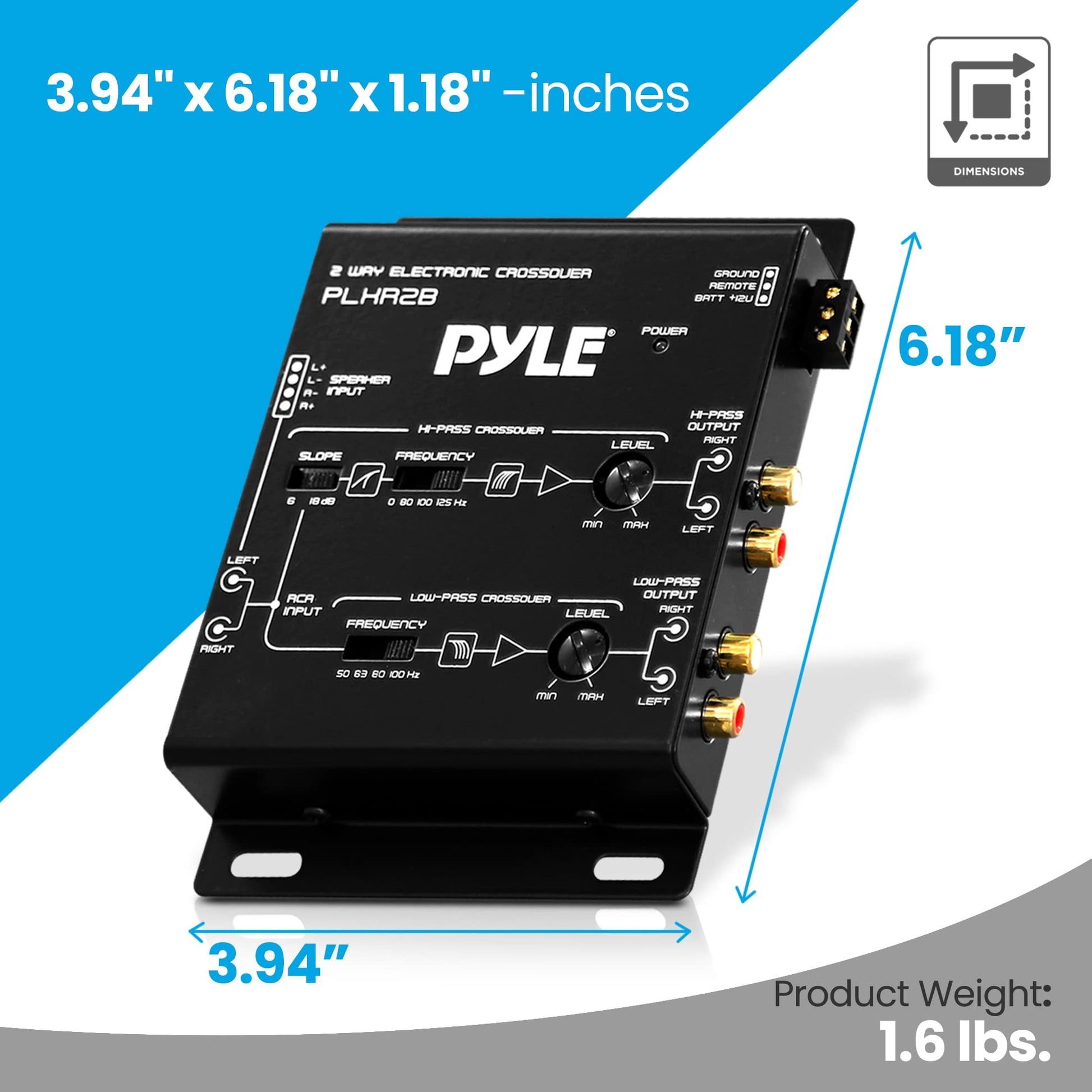

• Product Dimensions (L x W x H): 3.94 x 6.18 x 1.18 -inches
