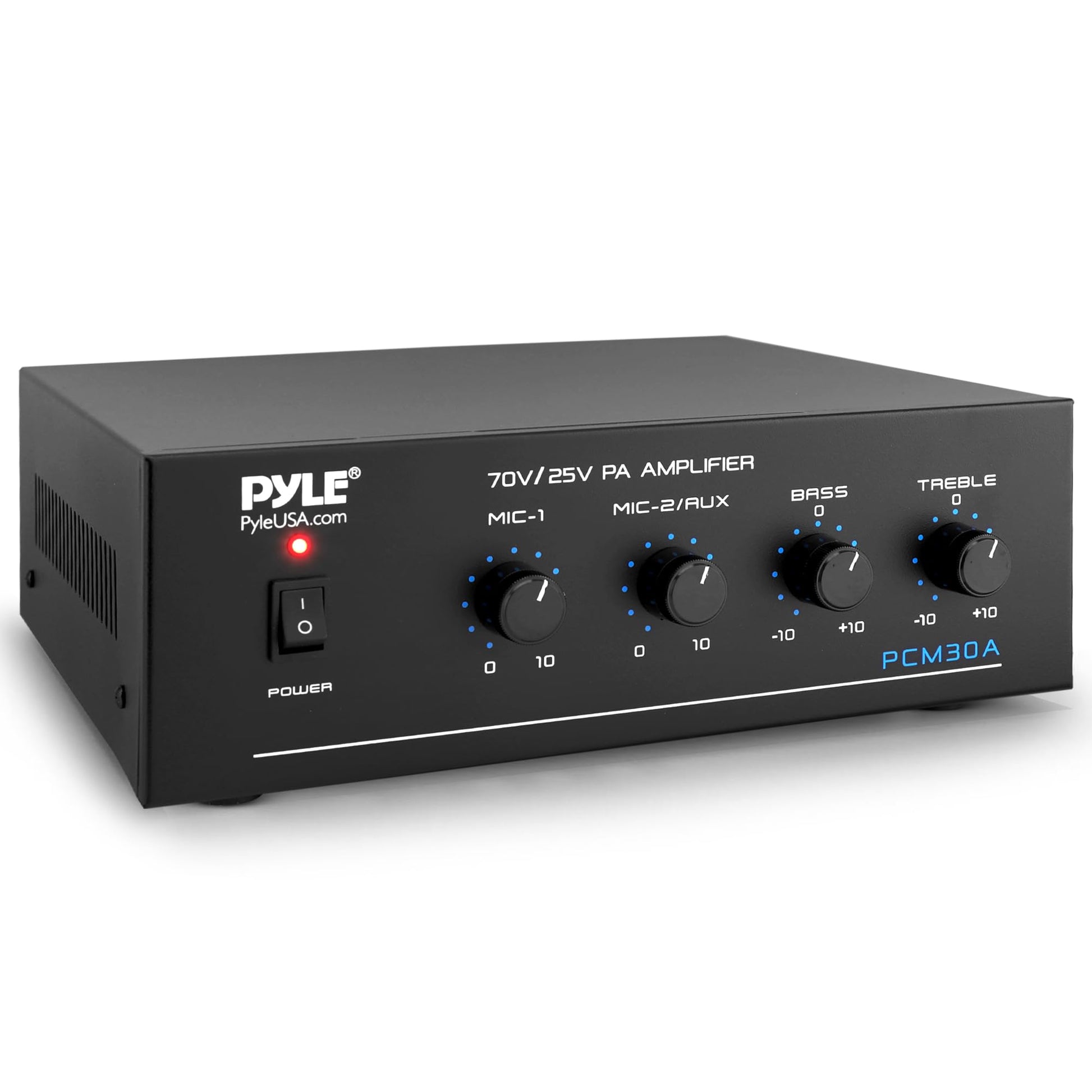

Pyle 60W Compact Mini Home Power Amplifier - Bluetooth 5.0 Stereo Receiver with RCA - 2 Mic Inputs - 25/70V Outputs - LED Indicator - Tone Control - Input Selector - For PA and Speaker System - PCM30A

• 60 WATT POWER: The Pyle Compact Bluetooth Power Amplifier gives your entertainment or PA system a boost! Provides convenient amplified speaker control w/ COM/4/8/16Ohm/25V/70V speaker outputs. Connect up to 2 mics using the rear terminals
• 5 INPUTS: The portable home amp box features AUX RCA audio input, 2 microphone terminals (MIC 1 features auto talkover function), monitors 600-Ohm 1V and 1W 8-Ohm terminals (music on hold), tel / paging terminals. Also features mute terminals
• COMPACT SIZE: The smart professional small indoor house stereo receiver features a mini compact size and measures 10.7” x 8.9” x 3.46”, easy to bring anywhere it is needed. Includes power cable. Also features LED indicator and replaceable fuse
• INDEPENDENT VOLUME CONTROL: The sound speaker amplifying device features independent volume gain control for each input, and also allows you to adjust the tone of the sound using the rotary treble and bass faders

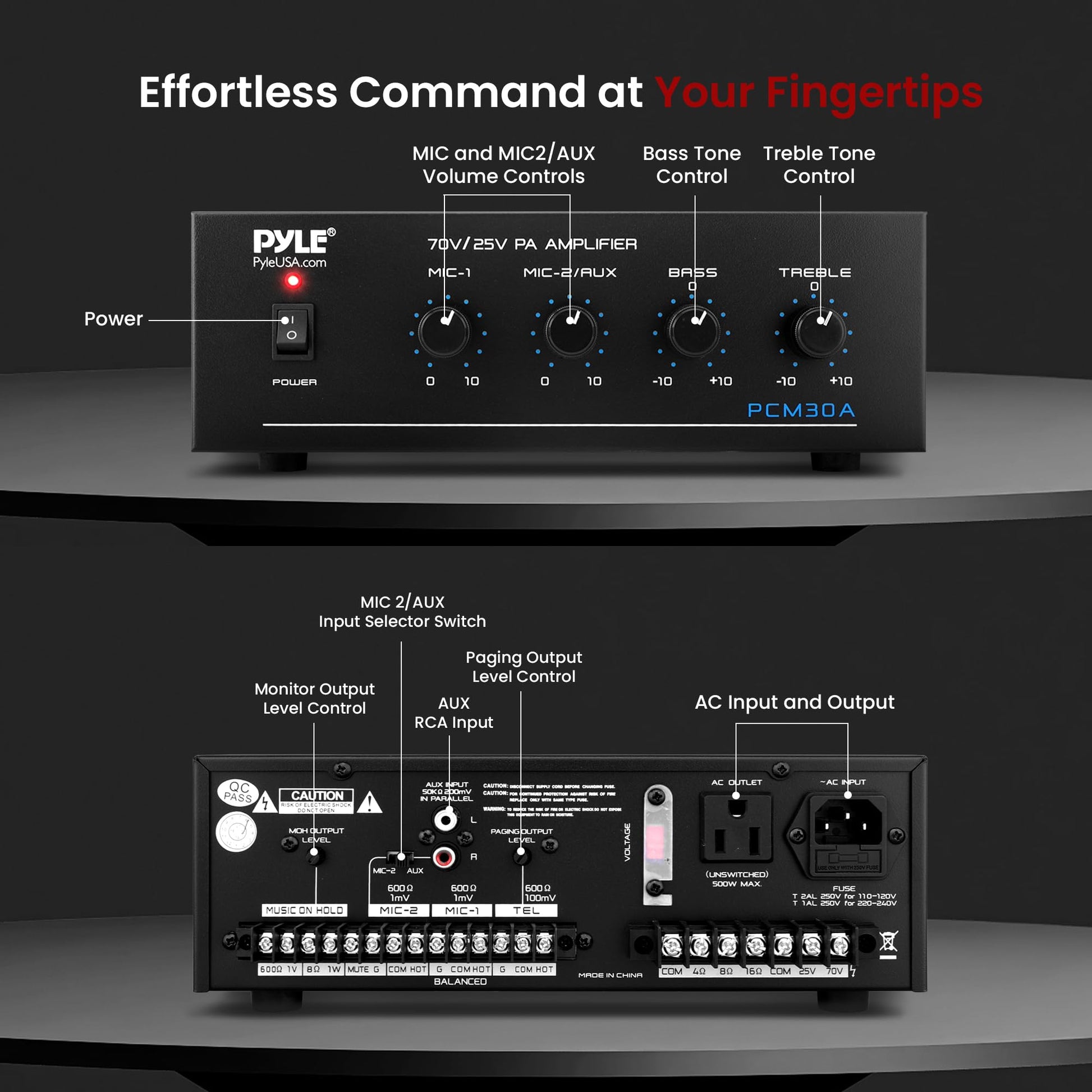

• FRONT PANEL CONTROL CENTER: The mini compact amplifier features front panel button control center. Has crisp power on/off button and input selector switch, MIC 1/MIC 2/AUX/monitor/paging output level control, and MIC/tel VOX level control

This 60 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. Connect up two mics using the rear terminals plus an auxiliary RCA input. Each input has an independent gain control and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Also capable of music-on-hold. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.

DETAILS

Features:

• Built-in Bluetooth for Wireless Audio Streaming
• Digital LED Display with FM Radio
• USB Flash Drive & SD Memory Card Readers
• Power On/Off Switch & LED Indicator
• MIC 1 Output Level Control
• MIC 2/AUX Output Level Control
• Bass and Treble Tone Controls
• AUX RCA Input
• MIC 2/AUX Input Selector Switch
• MIC 1/MIC 2 Terminals (MIC 1 Auto Talkover)
• Mute Terminals
• Detachable AC Power Input
• Replaceable Fuse
• Monitor 600-Ohm 1V Terminals (Music On Hold)
• Monitor 1W 8-Ohm Terminals (Music On Hold)
• Monitor Output Level Control (Music On Hold)
• TEL/PAGING Terminals
• Paging Output Level Control
• MIC/TEL VOX Level Control (Internal)

Bluetooth Connectivity:

• Works with All of Your Favorite Bluetooth Devices
• (iPhones Androids Smartphones iPad Tablet PC etc.)
• Bluetooth Network Name: ‘PYLEUSA’
• Bluetooth Version: 5.0
• Wireless Range up to 30’+ ft.

What’s In The Box:

• PA Amplifier
• FM Antenna
• Remote Control

Technical Specs:

• MAX Power Output: 500 Watt AC Outlet
• Construction Material: Iron
• Bass/Treble: +/-10dB 100-10kHz
• Frequency Response: 50-15kHz
• Attenuation (Mic): 61dB
• T.H.D.: <1%
• Speaker Terminals (COM/4-ohm/8-Ohm/16-Ohm/25V/70V)
• Battery Operated Remote Requires (1) x CR-2025 Button Cell Battery Included
• Power: 120/240 Voltage Selector
• Dimensions (W x H x D): 10.7 x 8.9 x 3.46 inches

Whats In The Box

PA Amplifier

FM Antenna

Remote Control

Specification

This 60 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. Connect up two mics using the rear terminals plus an auxiliary RCA input. Each input has an independent gain control and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Also capable of music-on-hold. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.
