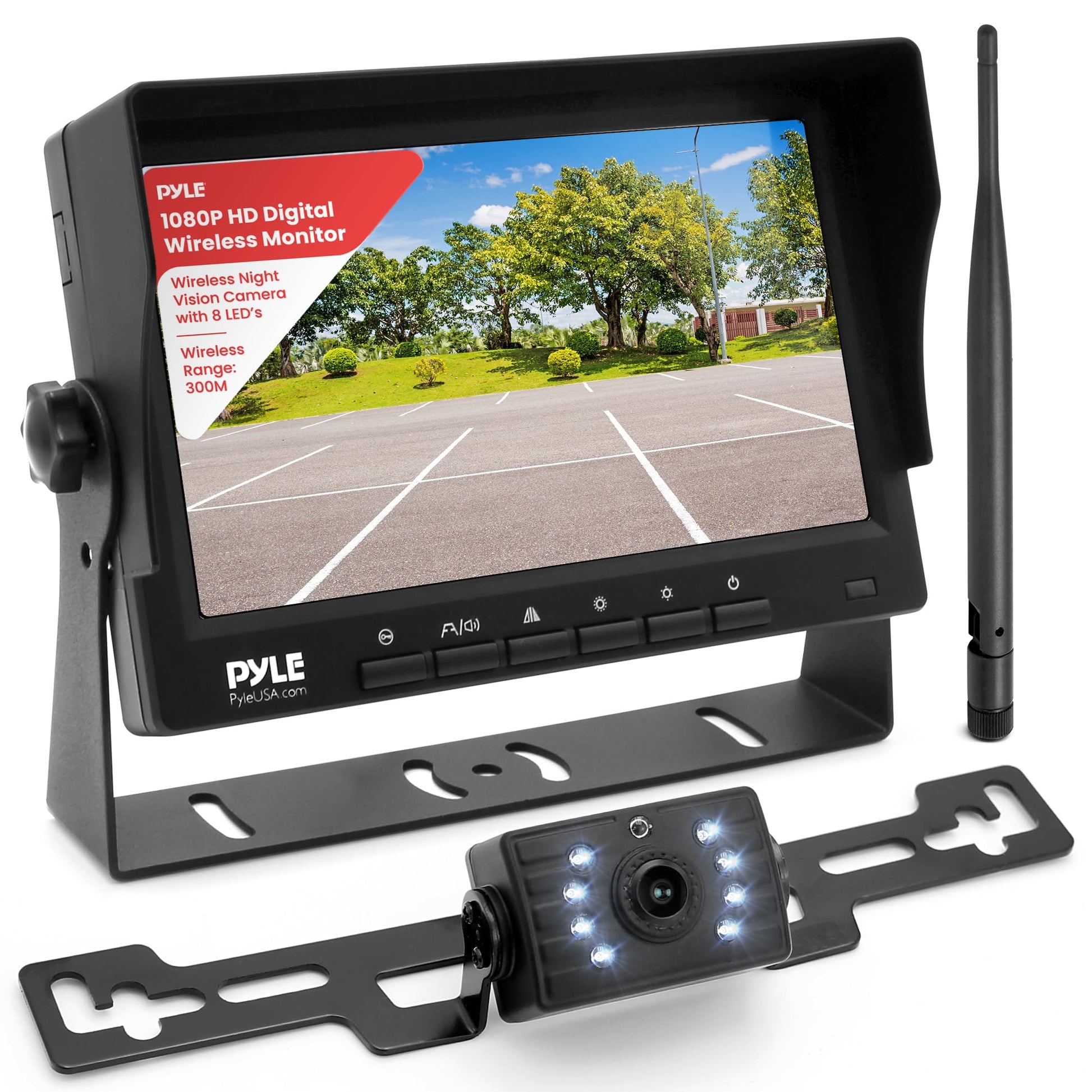

Pyle 7” 1080P HD Digital Wireless Monitor and Wireless License Plate Camera - Waterproof, Night Vision, Single Channel Visual Assistance Kit (12/24V for Bus, Truck, Trailer, Van, RV, Camper)

• WIRELESS SET UP: A car wireless monitor system that can be set up easily, no long wires required. The Camera has a built-in mic & transmitter to instantly send audio and video from cam to screen. Has a tilt adjustable angle

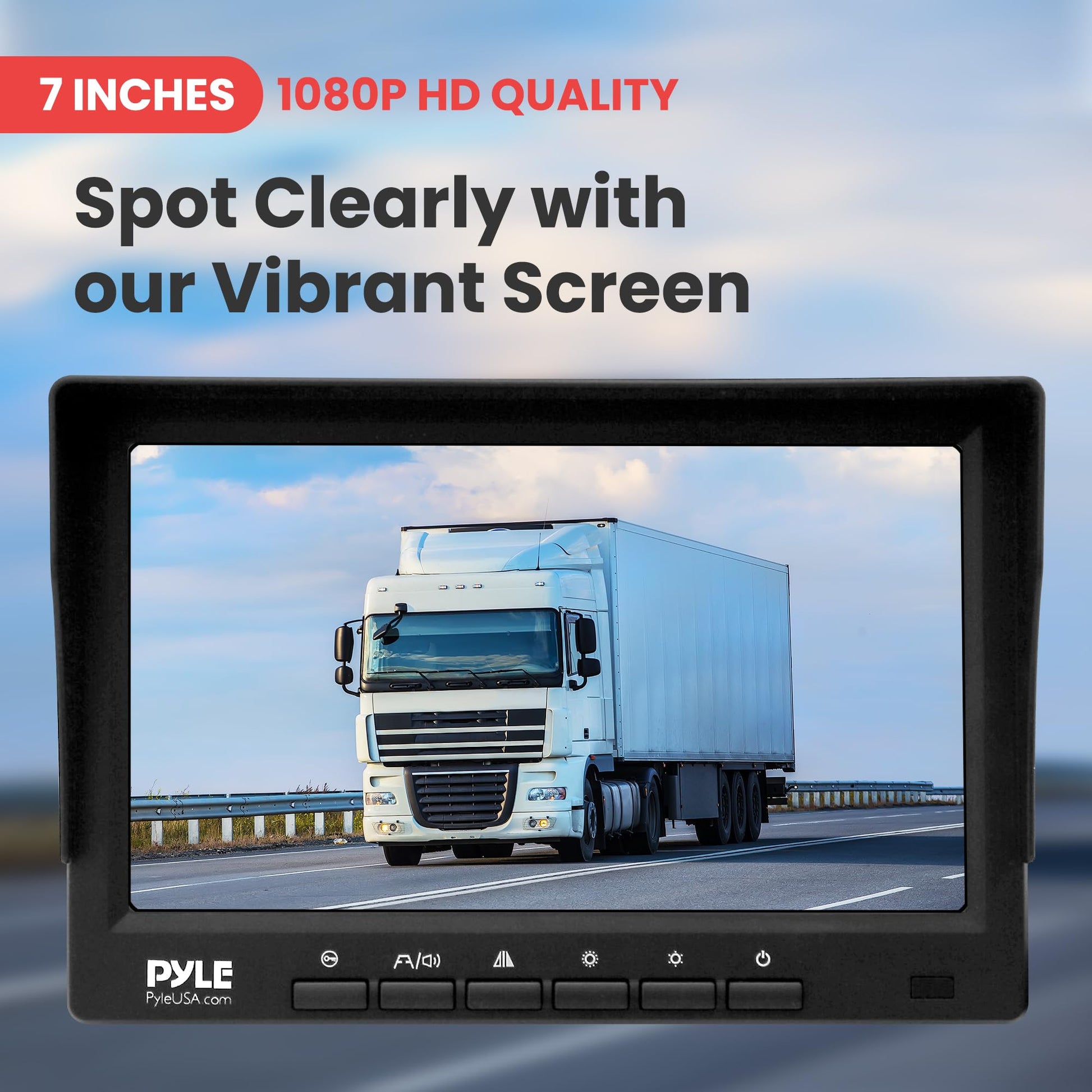

• 7” LCD IPS SCREEN: The car backup camera night vision wireless rear view camera and monitor set features a 7" inch Digital IPS Panel Screen w/ 16:9 Widescreen for Full Angle of View and it also has a sun visor monitor hood for convenient monitoring

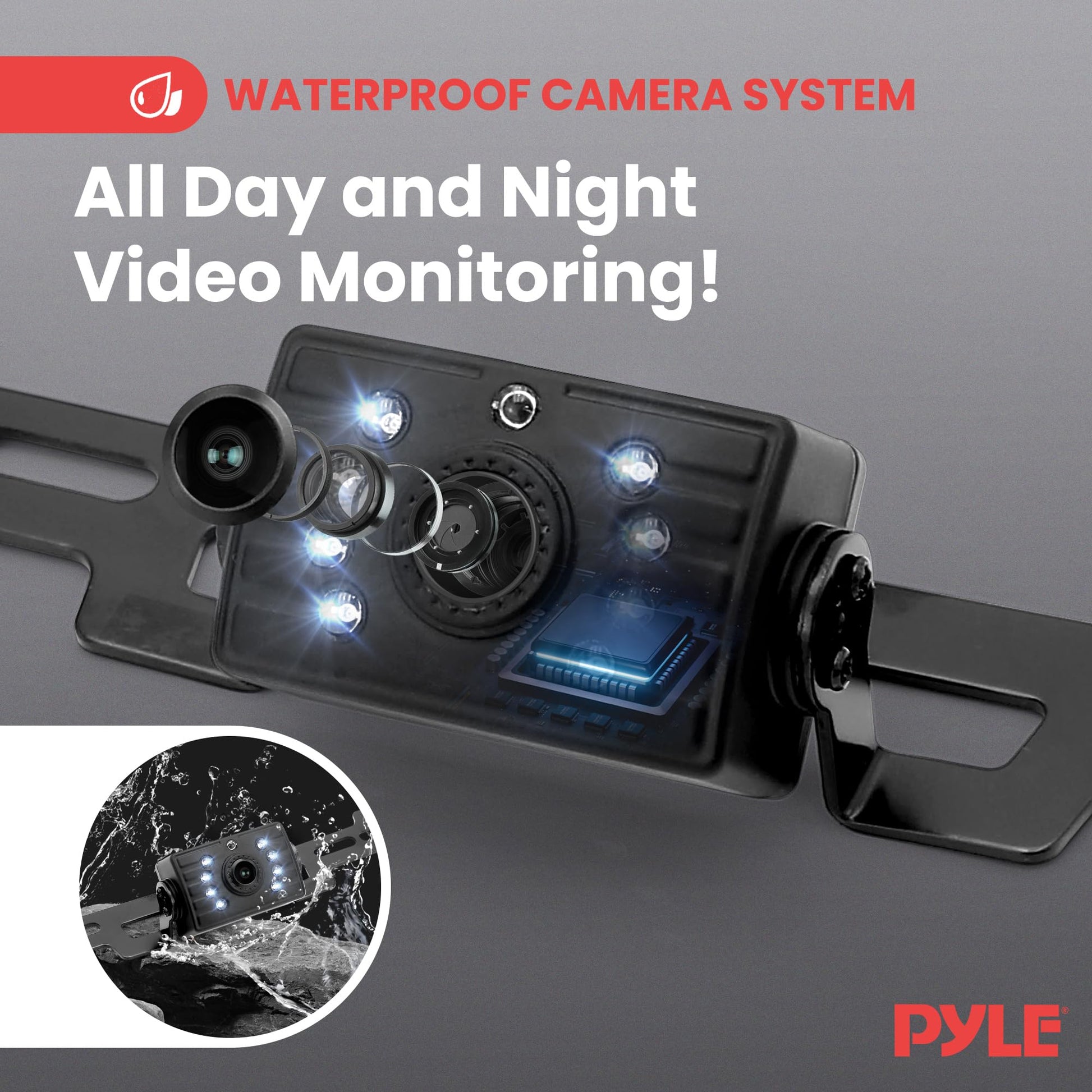

• WATER AND WEATHER RESISTANT: Both the rearview camera & monitor are water and weather-resistant and also include all necessary cables and wiring for easy installation. The car rearview camera is preferably mounted at the top of the back of the truck
• IR NIGHT VISION: This rear view backup camera wireless back up camera for travel trailer, truck, car, has an IR night vision ability w/ 3 meters visible distance for all day and night video monitoring and assistance
• DISTANCE SCALE LINES: A backup camera kit that features an accurate distance scale line display for proper parking and reversing without relying on side mirrors alone. This reverse parking sensor offers safety for jeeps, pickups and other automobiles

DETAILS

Features:

• 1080p HD Quality
• All View Angle IPS TFT LCD Panel
• 2.4G Digital Wireless Transmit Solution
• Wireless Transmit Range at About 300M
• Camera With Microphone for Sound Wireless Transmit
• Monitor Have Sound Mute Operation Button
• Camera With License Plate Easy Operation & Installation on Vehicles
• Single Cam View: Displays Picture from (1) Camera

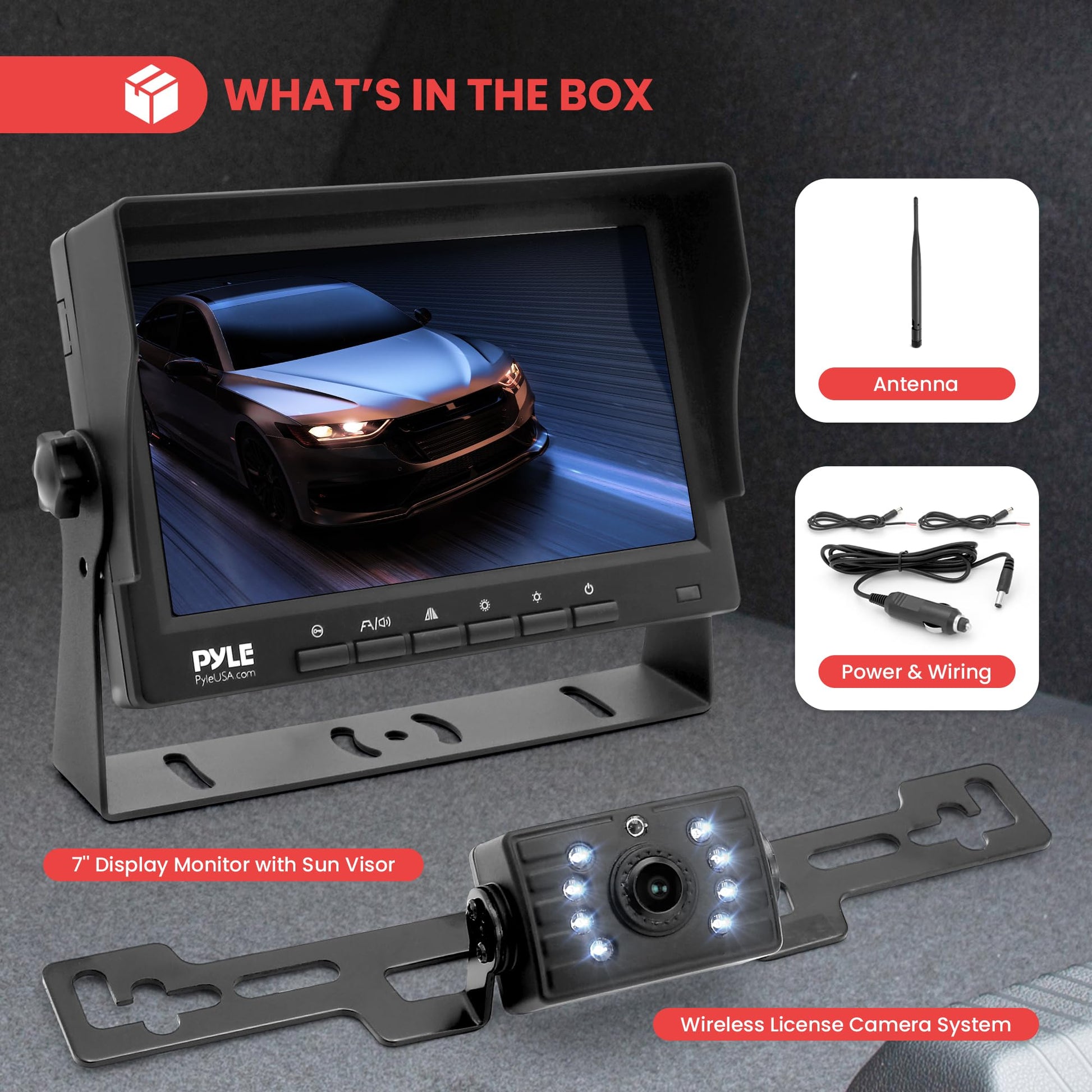

Whats in the Box:

• 7 Display Monitor
• Waterproof Camera
• Power & Wiring Harness
• Sun Visor Monitor Hood

Monitor Specs:

• Panel: 7-inch Digital Panel Screen (IPS panel Full Angle of View)
• Resolution: 800*480
• Power： DC12V & DC24V（MAX. to 36V）
• Power Consumption: Less than 5W
• Max. Current: Less 450mA
• Storage temperature: -30℃〜80℃
• Working temperature: -20℃ to 70℃
• With Sound control button
• With Speaker Built-in
• Monitor Wireless Receiver spec.
• Operating frequency range Cover: 2.4GHz~2.4835GHz
• Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
• Modulation Type: FSK/GFSK
• RX Sensitivity: -89dBm (Typ.) @4MHz BER<1E-3
• RF Bit Rate: 4MHz BER<1E-3
• Spread Spectrum: FHSS
• Distance: Over 984 ft.
• Monitor Dimensions: 7 x 2.9 x 4.7 -inches

Camera Specs:

• Image Sensor:1/3 sensor
• Effective Pixels: 720x576 pixel
• System: AHD
• Night vision visible distance: about 3 meters
• IR Night Vision: with IR
• Night vision visible distance: about 3 meters
• Power: DC 12V & 24V
• Power Consumption: Less than 5W
• Max. Current: Less 450mA
• Storage temperature: -30℃〜80℃
• Working temperature: -20℃ to 70℃
• Sound: With Microphone Built-in
• Camera Wireless Transmit spec.
• Operating frequency range Cover: 2.4GHz~2.4835GHz
• Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
• Modulation Type: FSK/GFSK
• RX Sensitivity: -89dBm (Typ.) @4MHz BER<1E-3
• RF Bit Rate: 4MHz BER<1E-3
• Spread Spectrum: FHSS
• Distance: Over 984 ft.
• Camera Dimensions: 2.6 x 1.5 x 1.4 -inches
• Camera with Bracket Dimensions: 9.8 x 1.7 x 1.4 -inches

Whats In The Box
