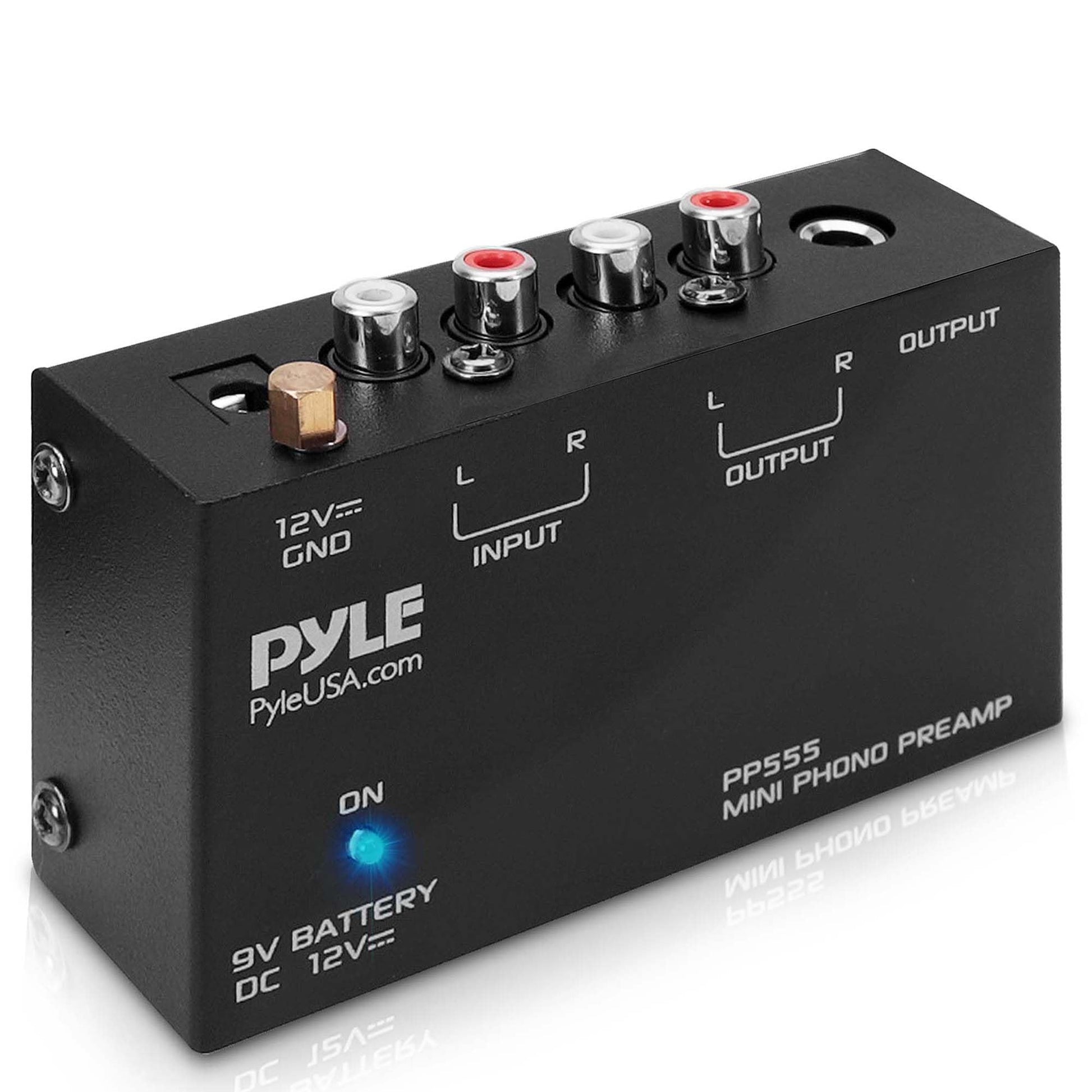

Pyle Phono Turntable Preamp - Mini Stereo Preamplifier with 9V Battery - 12V DC Power Adapter - RCA Input/Output - Low Noise - Ideal for Phonograph and Vinyl - PP555

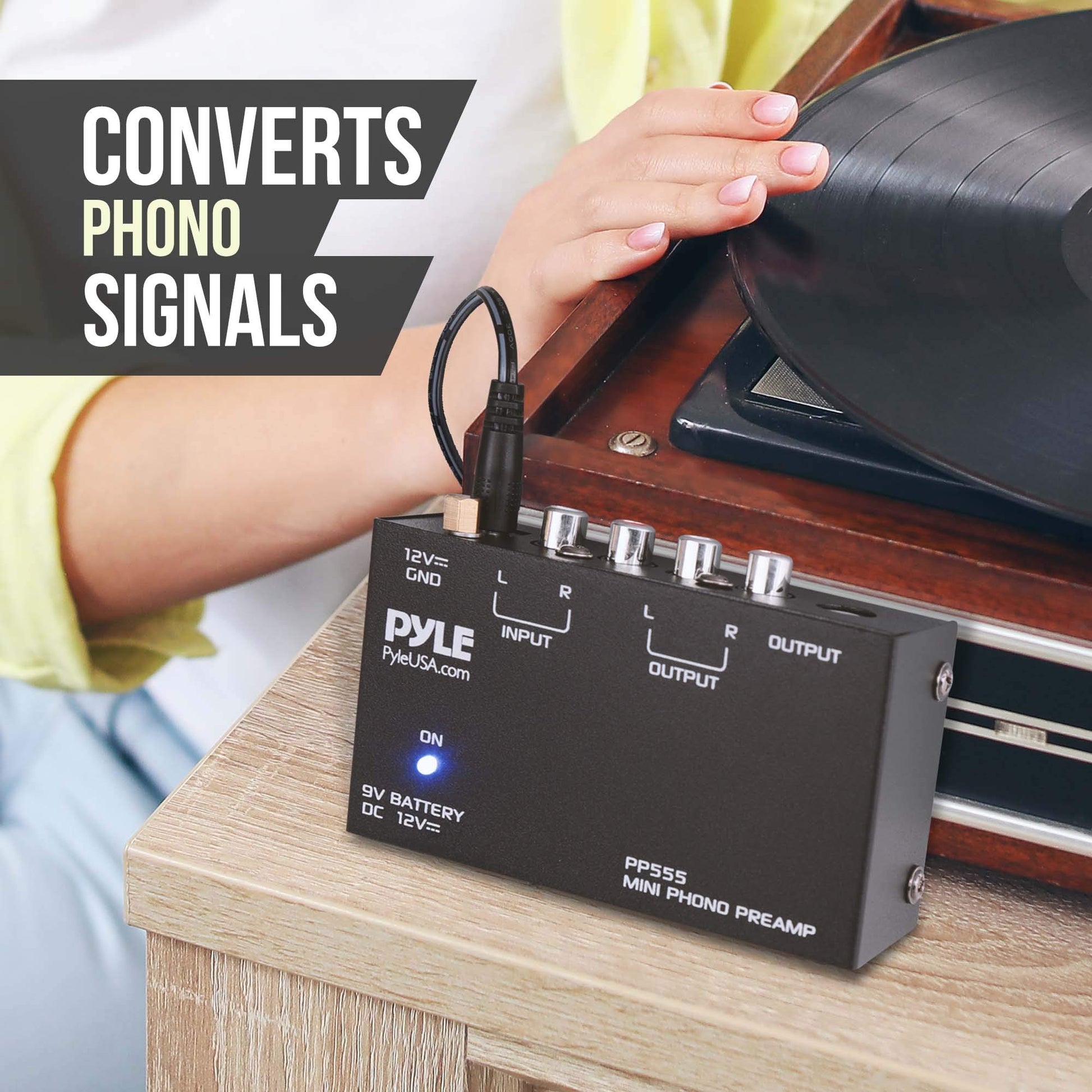

• CONVERTS PHONO SIGNALS: A turntable preamp that converts phono signals to Line Level Signals. This state-of-the-art circuitry phono preamp can accommodate magnetic pickups with an input sensitivity of 3mV at 50K Ohms.

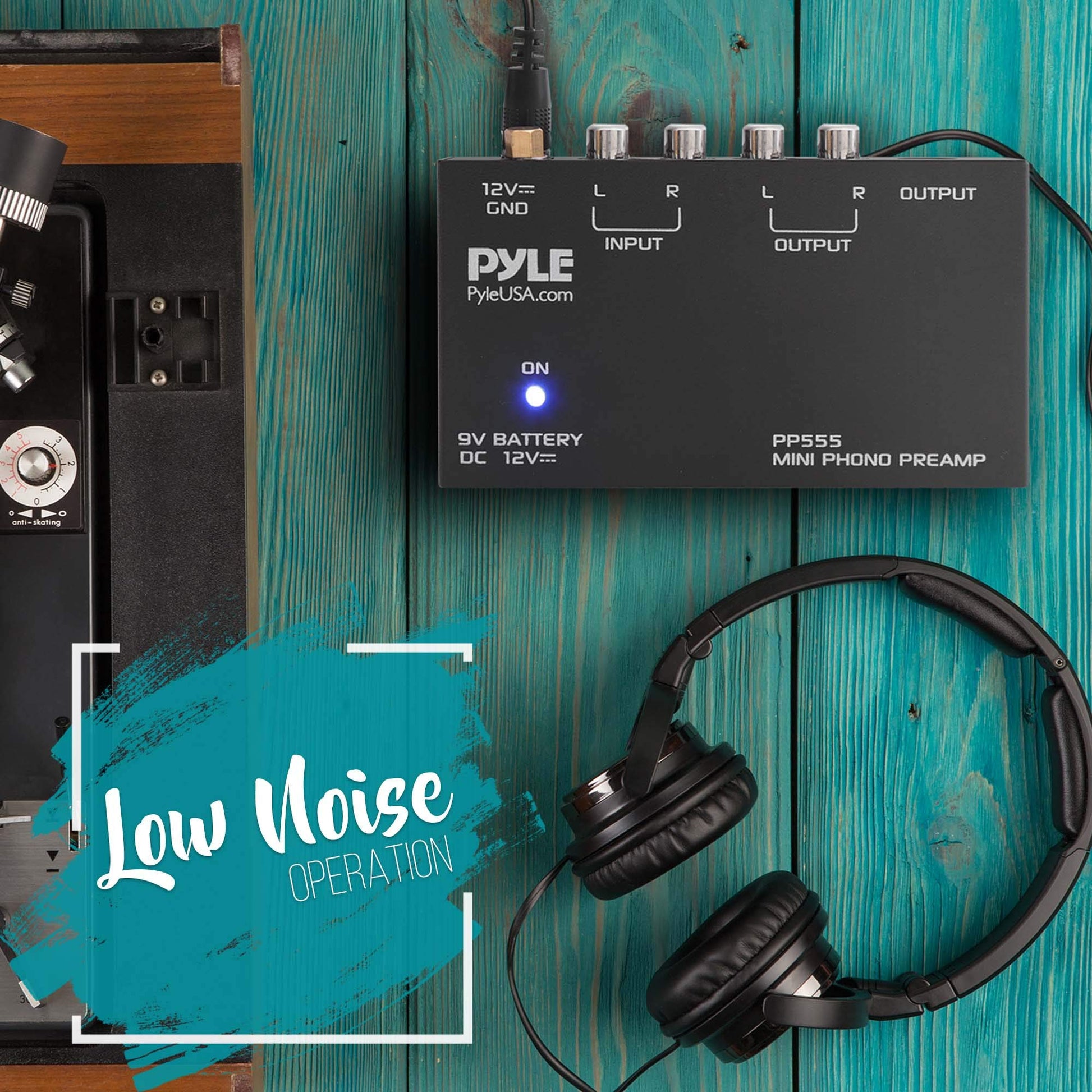

• LOW NOISE OPERATION: Offers outstanding performance with it’s Low-Noise Audio Operational Amplifiers. The output is 2V max (P-P) at 10K Ohms. It’s better to position the preamp close to the source to reduce unwanted noise and interference.

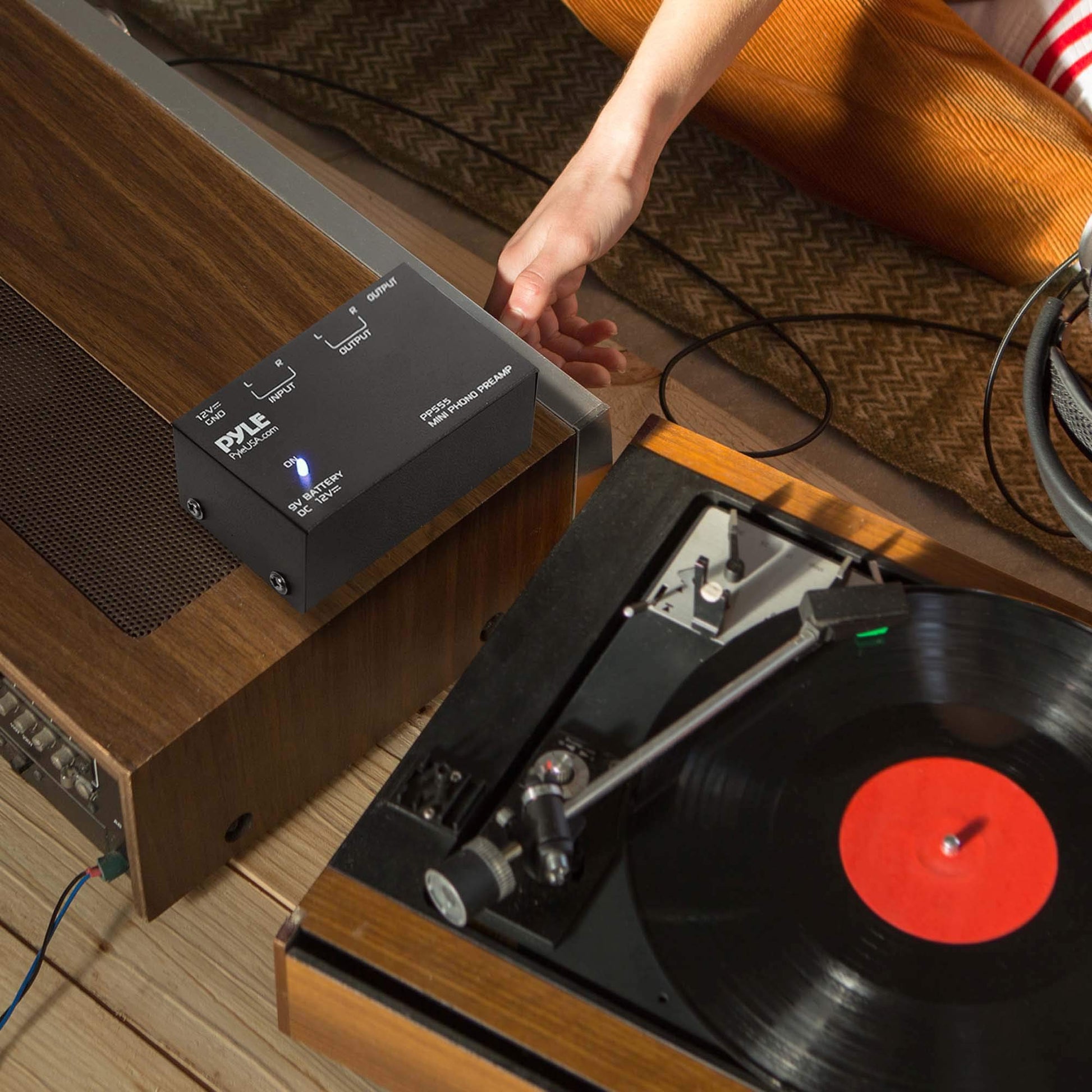

• CONNECTS TO TURNTABLES: Connect any turntable to modern sound equipment without specialized phono input for amplifying music. For the receiver, this can be connected to speakers, computers, laptops and more.

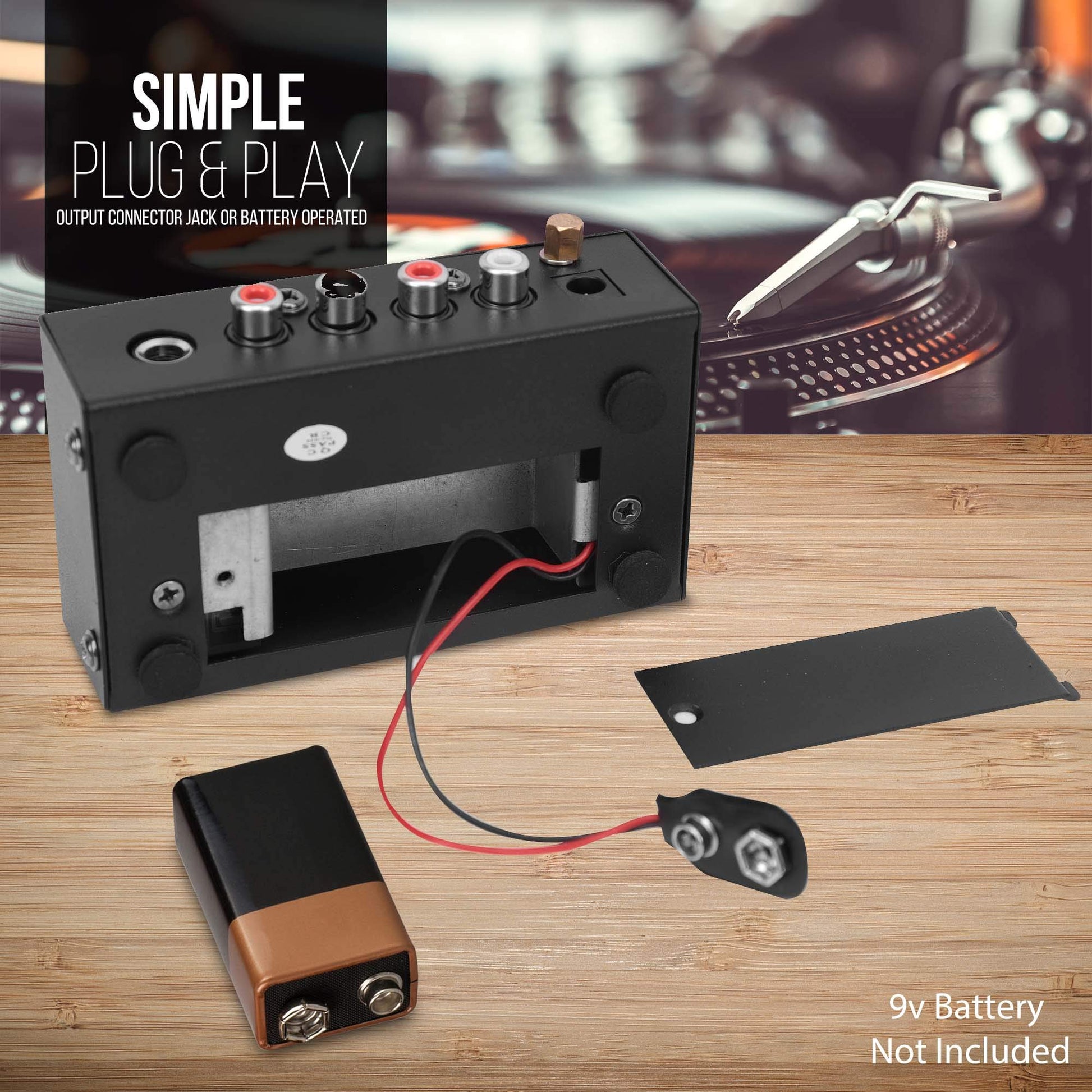

• SIMPLE PLUG & PLAY: This mini preamp has stereo RCA inputs and stereo RCA outputs. Connect the turntable to the RCA inputs and ground. Then, connect the amplifier receiver to the RCA outputs. Can also be powered with 9V battery.
• 0

This electronic preamplifier stands up to the test and will provide you with serious sound performance. The PP555 is perfect for bringing your studio equipments phono-level output to a more suitable line-level output. Compact preamp features include 9 Volt Battery Compartment Dedicated RCA 1/4-Inch Output Connectors and power Adaptor. Itll take your audio signal amplify its strength and prepare it for further processing by your studio equipment. Pre-amps technically provide voltage gain to your desired equipment and are key to assisting the signal source whether its a turntable musical instrument or microphone. The ultra-low noise audio conditioning circuitry allows the pre-amp to boost audio to levels that are more manageable for various types of audio equipment. Youll find it easier to adjust the recording level volumes of different sources from microphones and instruments alike. You should position your preamp close to the source to reduce unwanted noise and interference. Pre-amps can sometimes come built into the stereo equipment but if thats not the case the PP555 is an easy install wise choice and great addition to any musician or producer. Take your sounds and audio production skills to the next level with the PP555 Phono Turntable Preamplifier.

DETAILS

Features:

• Converts phono signals to line level signals
• Connects to turntable output bringing phono level up to line level
• State-of-the-art circuitry to accommodate magnetic pickups
• Ultra-low noise audio operation improves sound performance
• Universal compatibility: for turntables & other studio equipment

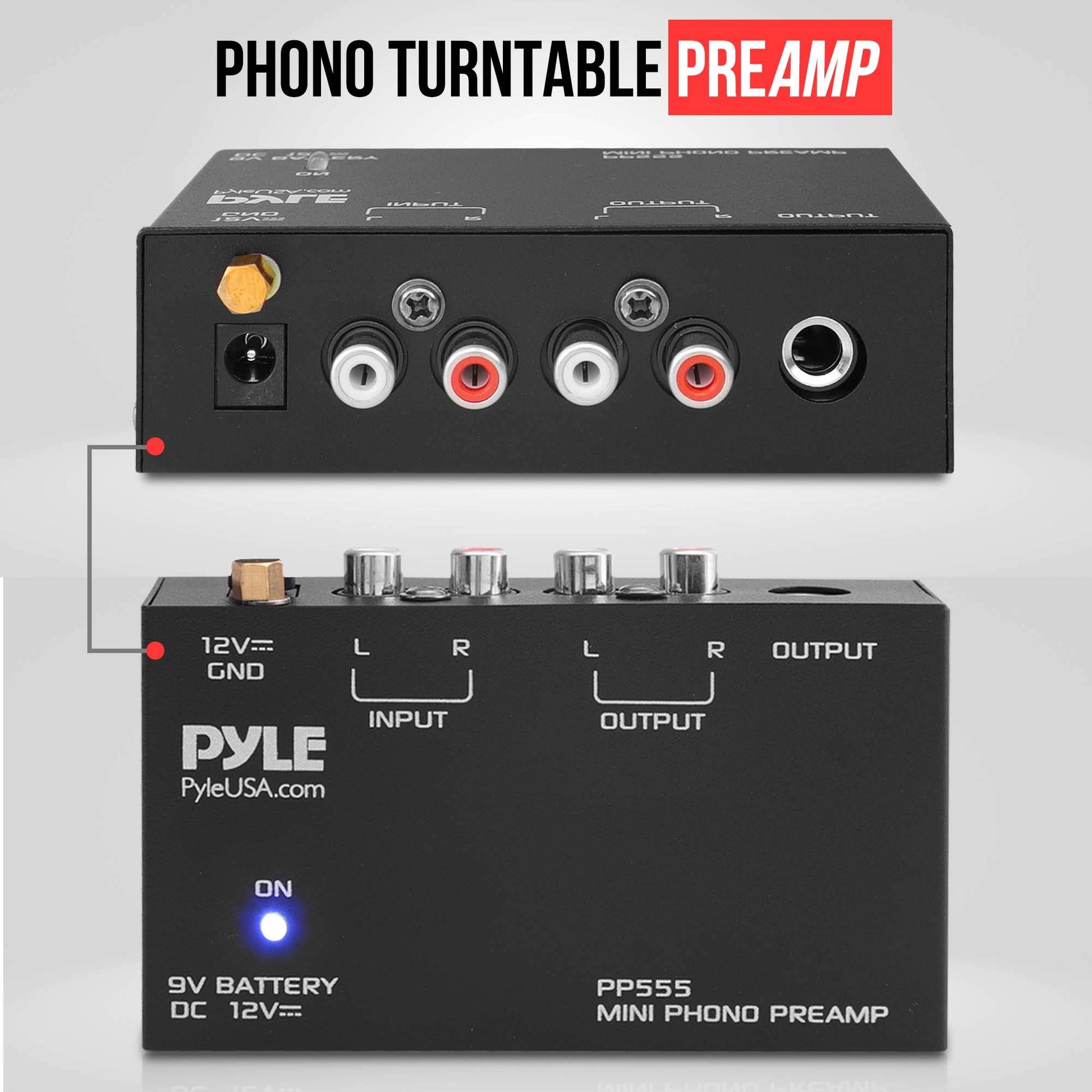

• RCA (L/R) Input & Output Connector Jacks
• 1/4 Output Connector Jack
• *or battery operated via 9-Volt battery

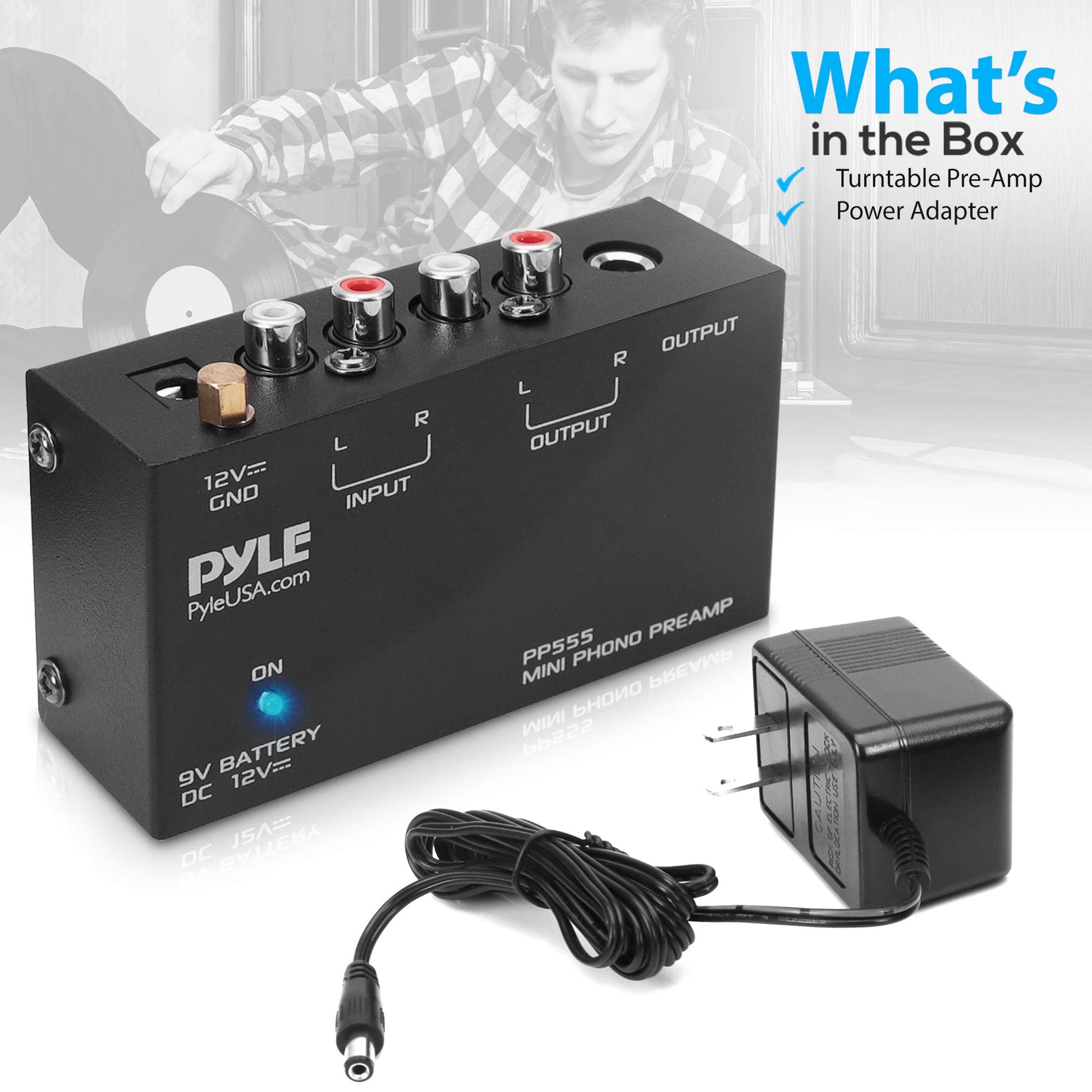

Whats in the Box:

• Turntable Pre-Amp
• Power Adapter

Technical Specs:

• S/N Ratio: 70dB
• THD: 0.08% @ 1kHz and 3mV
• Output: 2V max (P-P) at 10K Ohms
• Frequency Response: 20Hz to 20kHz @ 2dB
• Input Sensitivity: 3mV at 50K Ohms (Phono)
• Load Impedance: 10K Ohms - Reference Voltage: 1V d
• Battery Operated Requires (1) x 9V Battery Not Included
• Dimensions (W x H x D): 3.54 x 2.13 X 1.02 -inches

Whats In The Box

Turntable Pre-Amp

Power Adapter
