PYLE-PRO Premium Direct Injection Audio Box - Passive DI Unit Hum Eliminator w/ Input Attenuator to Connect Guitar & Bass - 1/4 Inch Impedance Transformer Connector to Balanced & Unbalanced XLR-PDC22 , Black

• DEVICE CONNECTOR: Provides a variety of DI solutions with its ¼ inch device connector and detachable AC power cord for live sound recording applications. It allows you to easily connect keyboards, guitars & outboard signal processors

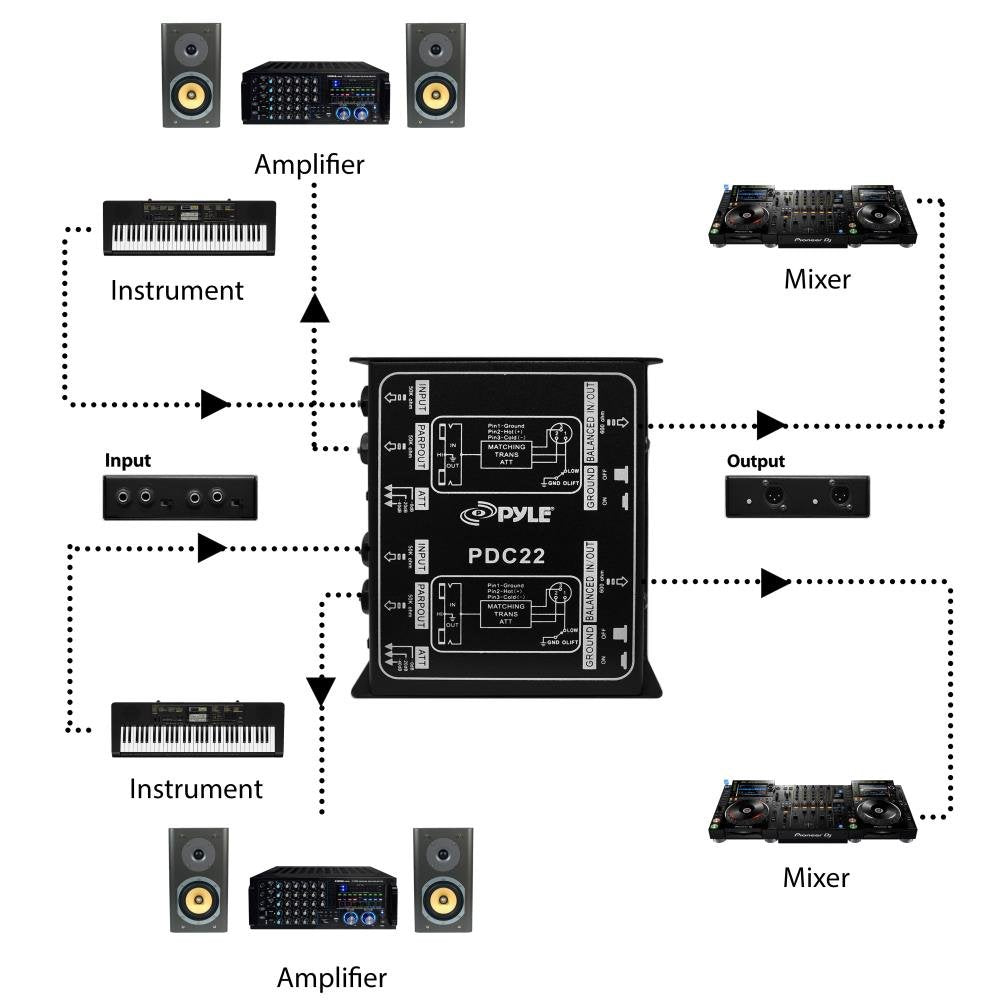

• PROVIDES CLEAN AUDIO: Useful for connecting unbalanced signals from sources submixers, effects processors & keyboards to a main PA or recording mixer. This impedance transformer also has buzz & hum cancellation ability
• EASILY CONNECTS INSTRUMENTS: Getting the signal of a musical instrument to the PA system is easier with this direct box. Just connect the electric bass, guitar, keyboard or other processors to the ground lift adapter & enjoy pure & clean audio
• VERSATILE DIRECT BOX: Aside from music instruments, the DI unit can also be connected to the line output of a boom box or consumer stereo system if you want to sample old records. The hum eliminator is used for connecting unbalanced devices as well
• 0

Pyle PDC22 is a necessity if you are looking for the higest quality of sound with low distortion noise and eliminate ground loops. A DI unit DI box Direct Box Direct Input Direct Injection or simply DI is an electronic device that connects a high impedance line level unbalanced output signal to a low impedance mic level balanced input usually via XLR connector. DIs are frequently used to connect an electric guitar or electric bass to a mixing consoles microphone input. The DI performs level matching balancing and either active buffering or passive impedance bridging to minimise noise distortion and ground loops. DIs do not perform impedance matching. Pyle has been in business for over 35 years and their manufacturing experience and expertise is easy to see - and hear.

DETAILS

Features:

• Two High-Quality Direct Boxes In One Convenient Enclosure
• Enables to Tap Off the Signals from Amplifiers such as Guitar or Power Amplifier
• Provides the Facility for the Direct Insertion of an Audio Signal into Mixer or Recorder
• 1/4 Device Connector
• Ultra-low Noise and Distortion
• Connects All Kinds of Audio Signals like Guitars Keyboards etc.
• Suitable for Outboard Signal Processors & High-Powered Speaker
• Enables to Tap Off the Signals w/out Affecting the Original Sounds
• Useful for Connecting Unbalanced Signals from Sources like Signals DJ and Sub Mixers
• Provides a Clean Signal at a Low Level
• Plug-in Guitar Directly into the PA System
• Easy to Use Passive Electronic Device
• Controls Hum and Buzz from Stage with the Ground Lift
• Heavy Duty 14 Gauge Steel Construction
• Bi-Directional Impedance Matching

What’s In The Box:

• Premium Direct Injection Audio Box

Technical Specs:

• Frequency Response: 5-35 KHz -3dB
• Noise Level: -104dBu
• THD: 0.013%
• Input Impedance: 50K Ohm
• Max.Input Level: +8.1 dBu (9V Batt) +11.3 dBu (48V Phantom)

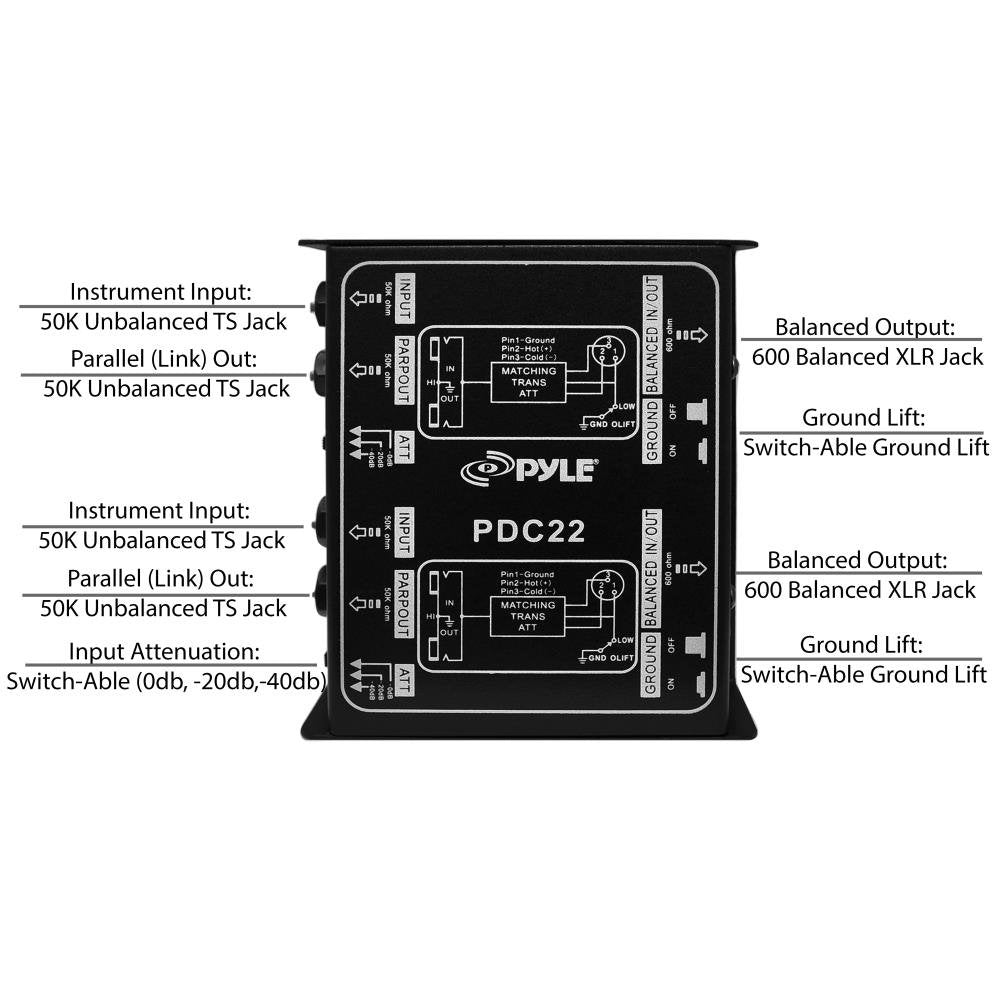

• Instrument Input: 1/4 Phone Jack unbalanced
• Parallel (link) Out: 1/4 Phone Jack unbalanced
• Balanced Output: XLR Connector balanced
• Ground Lift: Switch-Able Ground Lift
• Input Attenuation: Switch-Able (0db -20db-40db)
• Construction Material: All Steel Chassis

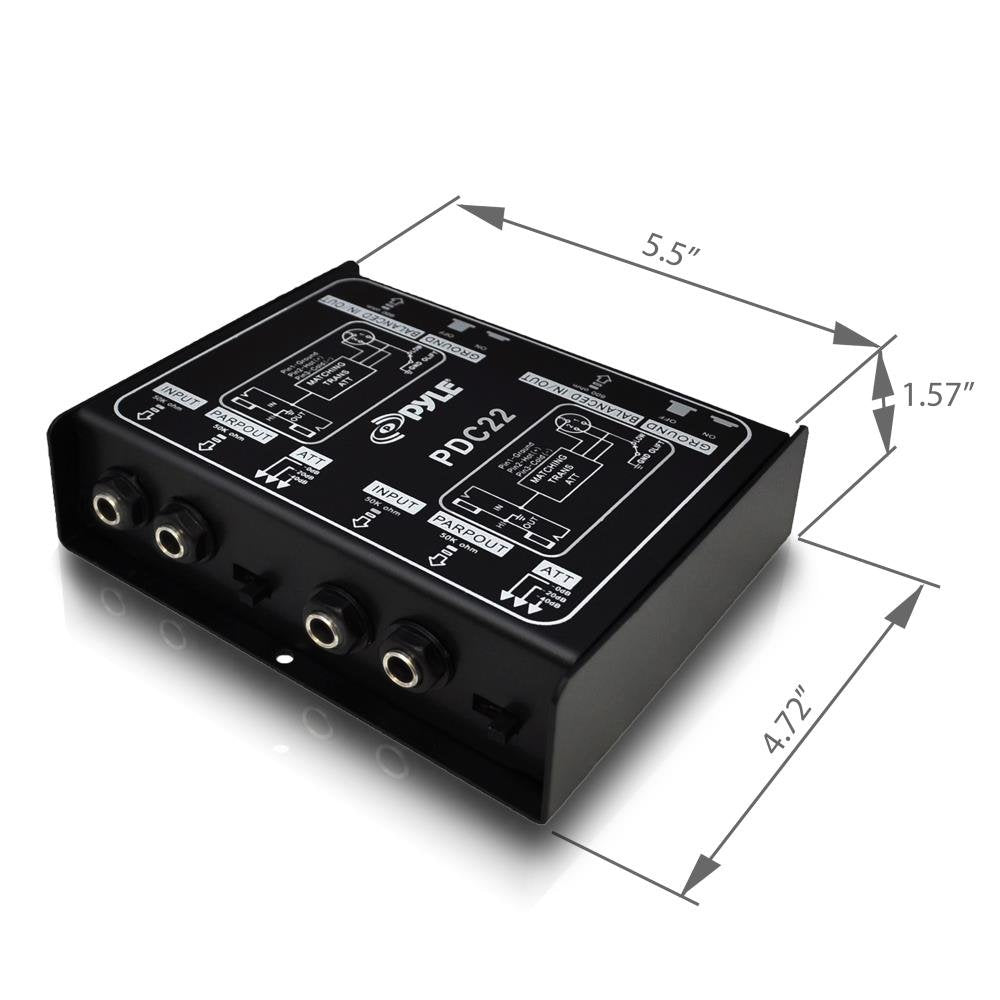

• Product Dimensions: 5.51 x 4.72 x 1.57 -inches

Whats In The Box

Premium Direct Injection Audio Box

Specification

Pyle PDC22 is a necessity if you are looking for the higest quality of sound with low distortion noise and eliminate ground loops. A DI unit DI box Direct Box Direct Input Direct Injection or simply DI is an electronic device that connects a high impedance line level unbalanced output signal to a low impedance mic level balanced input usually via XLR connector. DIs are frequently used to connect an electric guitar or electric bass to a mixing consoles microphone input. The DI performs level matching balancing and either active buffering or passive impedance bridging to minimise noise distortion and ground loops. DIs do not perform impedance matching. Pyle has been in business for over 35 years and their manufacturing experience and expertise is easy to see - and hear.
