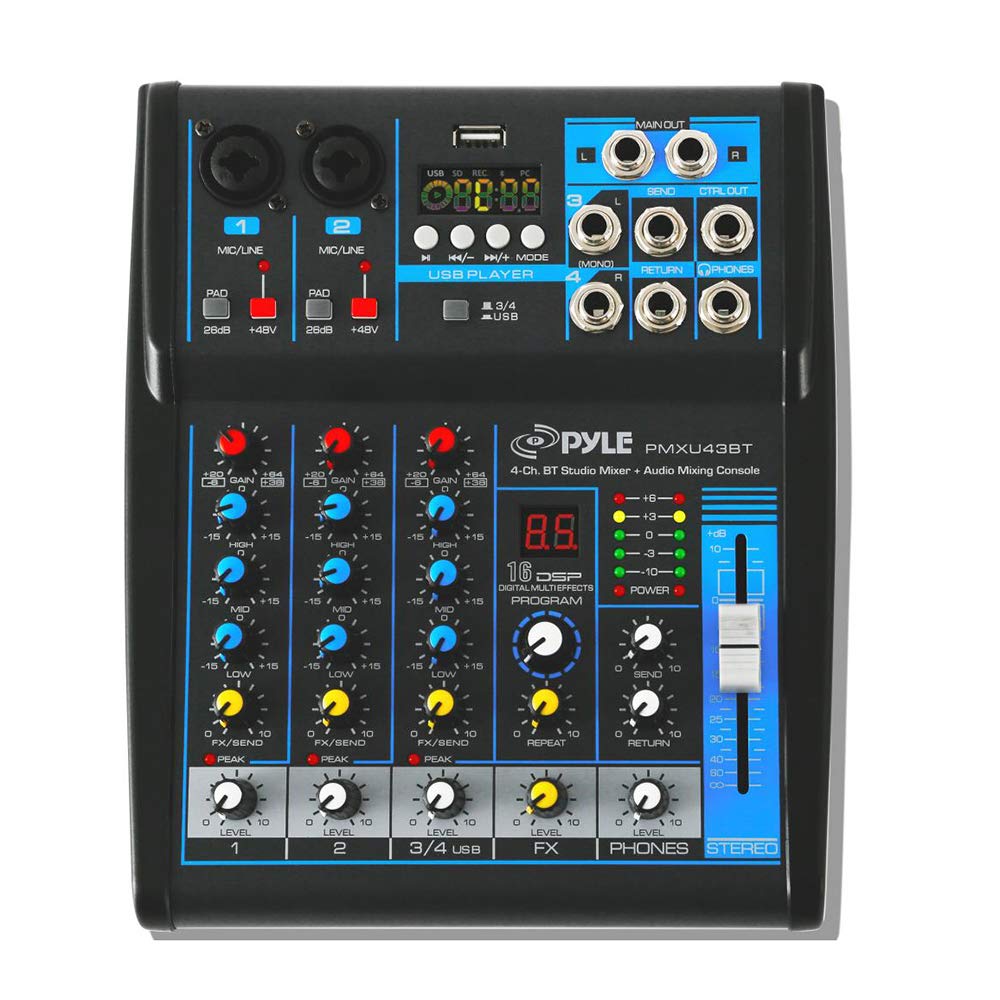

Pyle Professional Audio Mixer Sound Board Console System - Interface 4 Channel Digital USB Bluetooth MP3 Computer Input 48V Phantom Power Stereo DJ Studio Streaming FX 16-Bit DSP processor - PMXU43BT

• USB/FLASH READER/MP3 COMPATIBILITY - Connect your external USB, computer PC, flash drive or Bluetooth device to mix & record Use the built-in controls to play/pause, skip tracks and switch between modes
• BLUETOOTH WIRELESS STREAMING - Hassle and cable-free audio streaming ability directly to the console unit This audio mixer can wirelessly stream music tunes from iPad, iPhone and Android Smart Phone with mixing board from Pandora or Spotify
• MIC AND STEREO LINE INPUTS - Supporting XLR and unbalanced 1/4" Plug with +48V Phantom button, highly accurate LED Peak Level Indicator and Ultra-musical 3-band EQ on all channels ultra-low noise, high headroom mixer with super easy functionality
• RUGGED STEEL CHASSIS - With sealed rotary controls to resist dust and grime, this compact DJ Mixer will provide total dynamic control This incredibly versatile mixer is great for high quality on stage performance, live gigs and Karaoke
• NEW MULTI-VOLTAGE POWER SUPPLY - 100V-240V (+/-15V DC power adapter) ideal for worldwide usage. Enjoy a value packed mixing solution today with performances that sound great each time

The Pyle 4-Ch. Bluetooth Studio Mixer - DJ Controller Audio Mixing Console System - DJ & Studio Console Mixer System - Multi 4-Channel Audio Source Mixing - Built-in Bluetooth Wireless Receiver - FX (Analog Effects) & 16 Bit DSP processor - Direct-to-Computer Connect & Sound Record Ability - LCD Digital Display & Front Panel Control Center - Rotary Adjustment Knobs & LED Indicator Lights - MP3 Digital Audio File Compatibility - USB Interface: MP3 Flash Drive Reader/Computer Connection - Connect & Stream Audio from External Devices - (2) 1/4’’ (L/R) MAIN Outputs - (2) XLR/14’’ Combo Audio LINE/Microphone Inputs - 1/4’’ Mono + Stereo Inputs - 1/4’’ Send + Return Inputs - 1/4’’ Headphone Jack.

DETAILS

Features:

• DJ & Studio Console Mixer System
• Multi 4-Channel Audio Source Mixing
• Built-in Bluetooth Wireless Receiver
• FX (Analog Effects) & 16 Bit DSP processor
• Direct-to-Computer Connect & Sound Record Ability
• LCD Digital Display & Front Panel Control Center
• Rotary Adjustment Knobs & LED Indicator Lights
• MP3 Digital Audio File Compatibility
• USB Interface: MP3 Flash Drive Reader/Computer Connection
• Connect & Stream Audio from External Devices
• (2) 1/4’’ (L/R) MAIN Outputs
• (2) XLR/14’’ Combo Audio LINE/Microphone Inputs
• 1/4’’ Mono + Stereo Inputs
• 1/4’’ Send + Return Inputs
• 1/4’’ Headphone Jack
• Stereo Level Fader/Slider
• Output Signal Level Indication
• BUS Audio Control Sound Routing
• PAD Channel Source Input Switch
• Independent Channel Input Audio Configuration
• Gain High Mid Low FX/Send Level Base + Tone Adjustment
• +48V Phantom Power Control
• Power ON/OFF Switch
• Used for Professional Studio Applications & On-Stage Performances

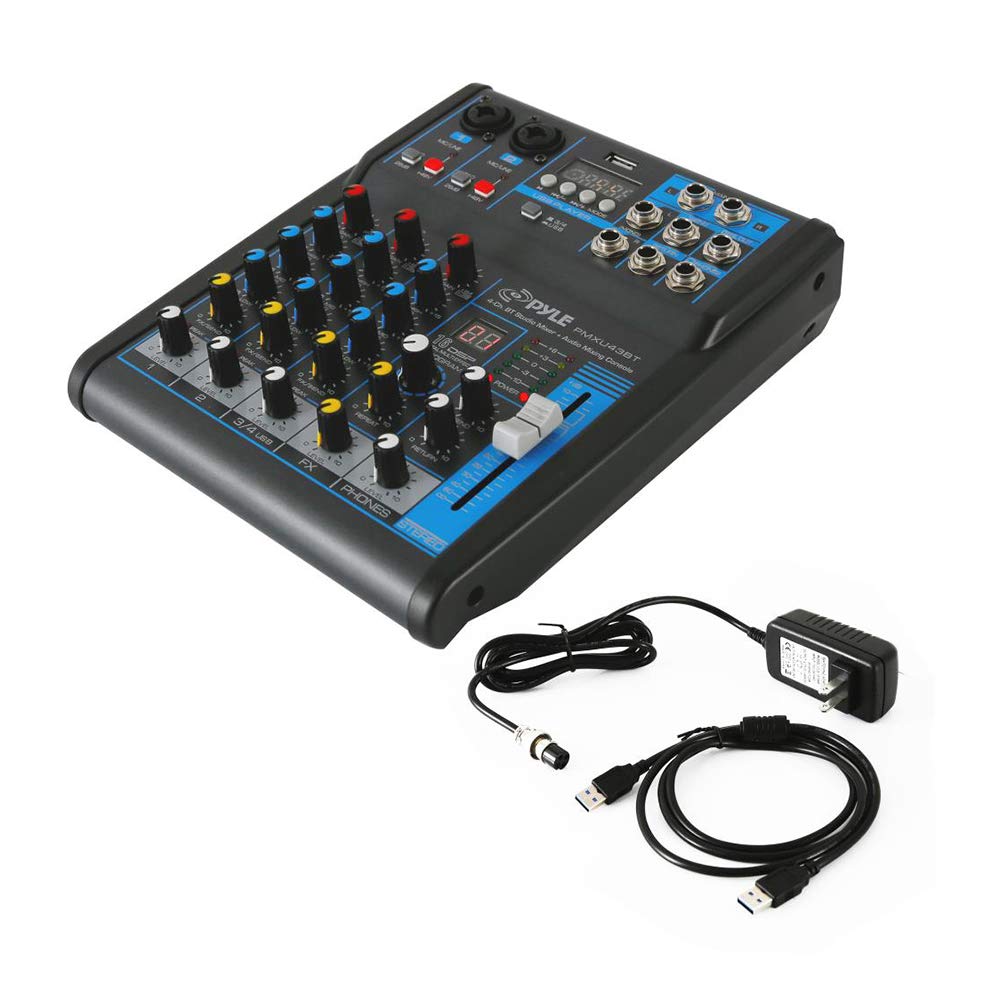

What’s in the Box:

• Bluetooth Studio Mixer
• Power Adapter Cable 4-Pin

Wireless Bluetooth Connectivity:

• Hassle-Free Audio Streaming Ability
• Works with All of Today’s Latest Devices
• (Smartphones Tablets Laptops Computers etc.)
• Bluetooth Network Name: ‘KT-08UP’
• Bluetooth Version: 4.0
• Wireless Range: 15’+ ft.

Technical Specs:

• Input Mixer Channels: 4-Ch. (+ FX/Headphones)
• Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
• Input Frequency Response: 20Hz-20kHz +/-3dB
• Input Distortion: 0.03% 1kHz/150mV Input
• Channel GAIN Adjustment: +20/+64 (-6/+38)
• HIGH Gain: +/-15 dB 12kHz Frequency Shelving
• MID Gain: +/-15 dB 2.5kHz Frequency Shelving
• LOW Gain: +/-15 dB 80kHz Frequency Shelving
• HIGH/MID/LOW Adjustment: -15/+15dB
• Stereo Output Level Meter: 5-Segment (+6 +3 0 -3 -10dB)
• PAD Input Channel Adjustment: 26dB
• Peak CLIP Level: < 3dB
• Phantom Power Voltage: +48V
• Power Supply: 100-240V (+/-15V DC Power Adapter)
• Digital Audio File Compatibility File-Types: MP3 WAV
• Dimensions (L x W x H): 9.3’’ x 7.5’’ x 2.6’’

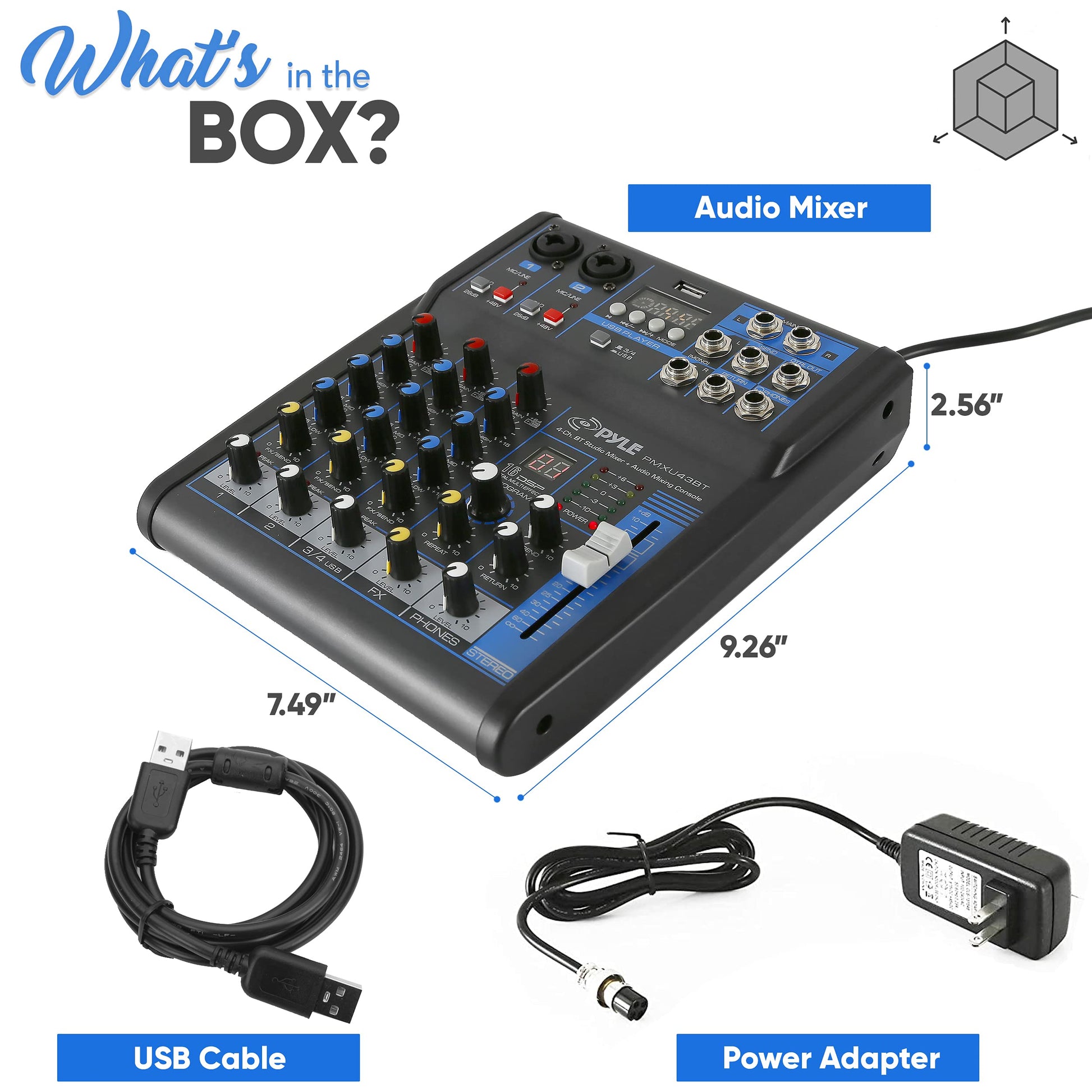

Whats In The Box

Bluetooth Studio Mixer

Power Adapter Cable 4-Pin
