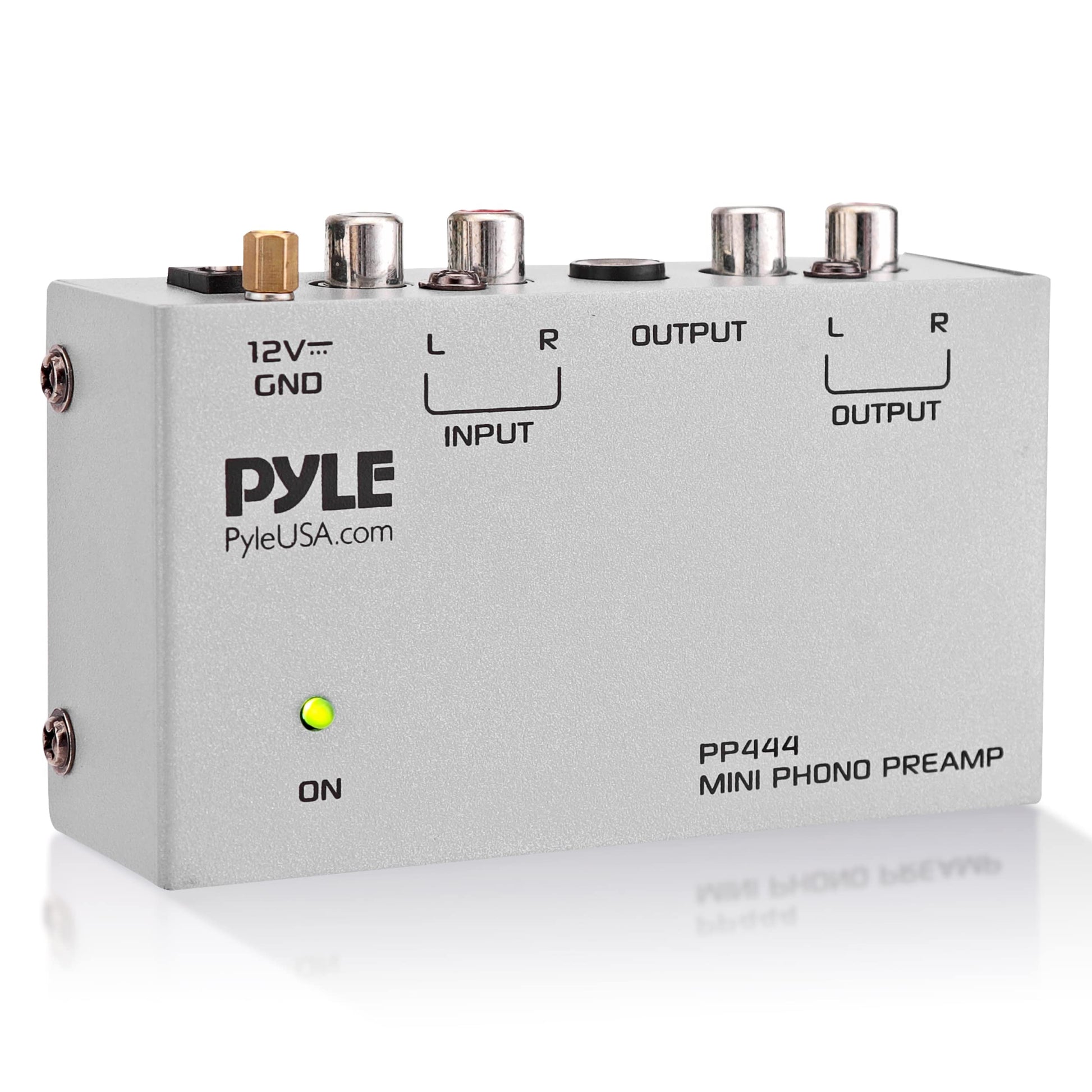

Pyle Ultra Compact Phono Preamp - Mini Turntable Preamp for Audio - Guitar, Microphone - RCA Input/Output for Record Player - Receiver - Amplifier - PP444

• CONVERTS PHONO SIGNALS: A turntable preamp that converts phono signals to Line Level Signals This state-of-the-art circuitry phono preamp can accommodate magnetic pickups with an input sensitivity of 3mV at 50K Ohms
• LOW NOISE OPERATION: Offers outstanding performance with it’s Low-Noise Audio Operational Amplifiers The output is 2V max (P-P) at 10K Ohms It’s better to position the preamp close to the source to reduce unwanted noise and interference
• CONNECTS TO TURNTABLES: Connect any turntable to modern sound equipment without specialized phono input for amplifying music For the receiver, this can be connected to speakers, computers, laptops and more

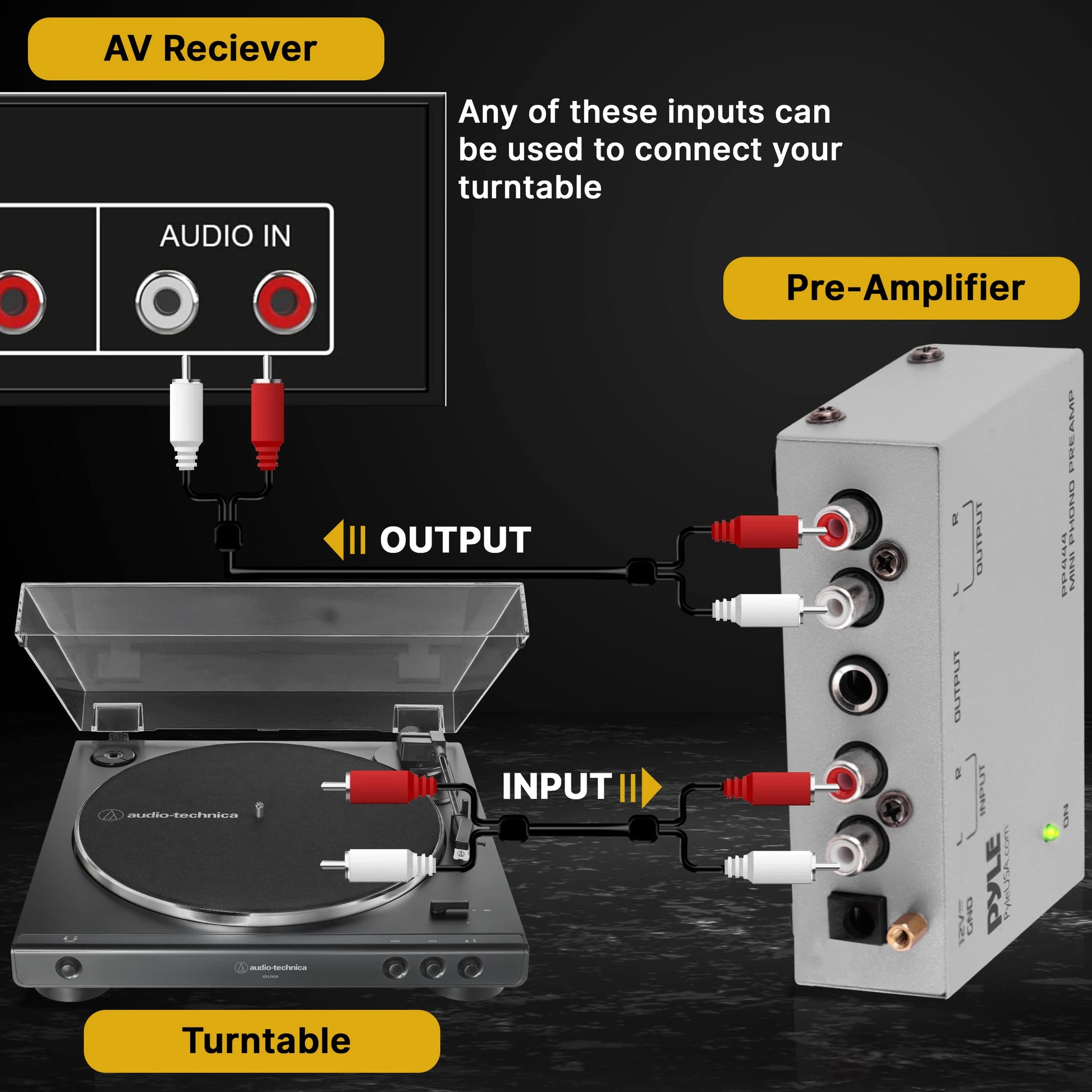

• SIMPLE PLUG & PLAY: This mini preamp has stereo RCA inputs and stereo RCA outputs Connect the turntable to the RCA inputs and ground Then, connect the amplifier receiver to the RCA outputs
• 1 YEAR WARRANTY: We guarantee this electric phono preamplifier with both a 30 day no hassle money back return policy and a 1 year manufacturer’s guarantee

This electronic preamplifier stands up to the test and will provide you with serious sound performance. The PP444 is perfect for bringing your studio equipments phono-level output to a more suitable line-level output. Itll take your audio signal amplify its strength and prepare it for further processing by your receiver or amplifier. Preamps technically provide voltage gain to your desired equipment and are key to assisting the signal source whether its a turntable musical instrument or microphone. The ultra-low noise audio conditioning circuitry allows the preamp to boost audio to levels that are more manageable for various types of audio equipment. Youll find it easier to adjust the recording level volumes of different sources from microphones and instruments alike. You should position your preamp close to the source to reduce unwanted noise and interference. Preamps can sometimes come built into the stereo equipment but if thats not the case the PP444 is an easy install wise choice and great addition to any musician or producer. Take your sounds and audio production skills to the next level with the PP444 Preamplifier.

DETAILS

Converts Phono Signals to Line Level Signals

State-of-the-Art Circuitry Accommodates Magnetic Pickups

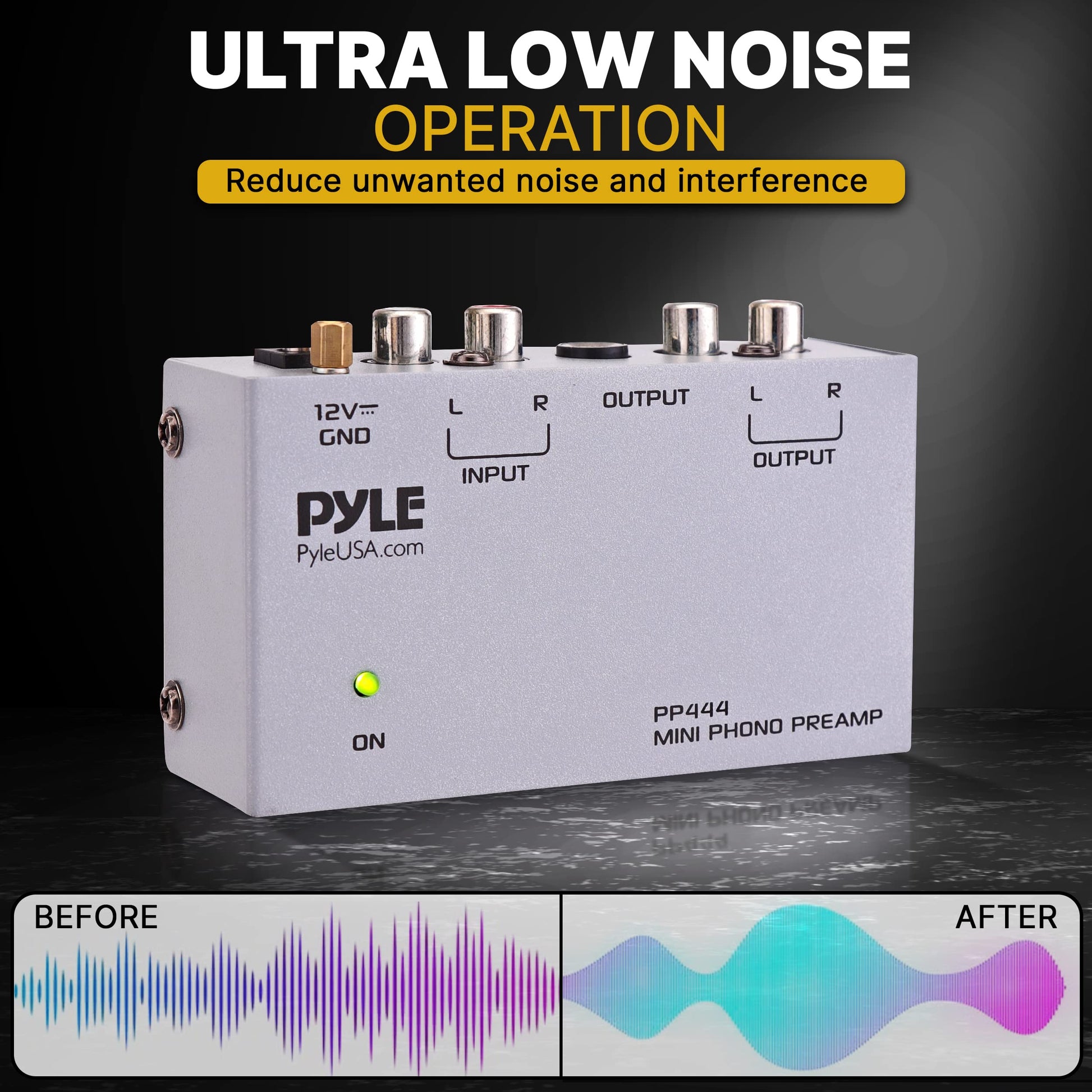

Ultra-Low Noise Operation Improves Sound Performance

Connects to Turntables and Other Studio Equipment

Input Sensitivity: 3mV at 50K Ohms (Phono)

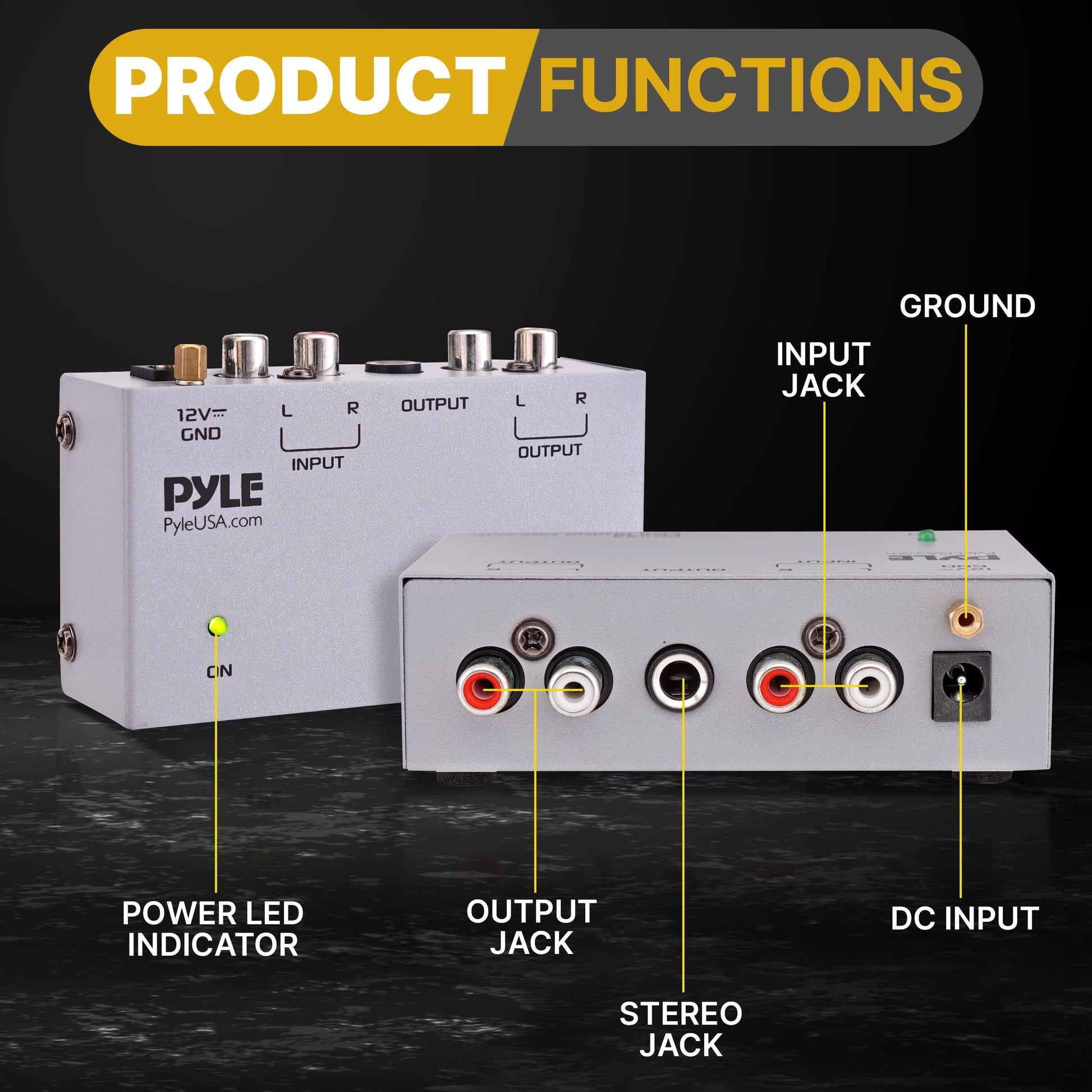

Dedicated RCA and 1/4 Output Connectors

Output: 2V max (P-P) at 10K Ohms

DC 12-Volt Power Adapter Included

Frequency Response: 20 Hz ~ 20 KHz ±2dB

S/N Ratio (A-WTD): 70 dB - Output Level: 2V

THD: 0.08% @ 1KHz and 3mV Input | S/N Ratio: 70dB

Input Sensitivity/Impedance/Phono 3 mV / 50K Ohms

Load Impedance: 10K Ohms - Reference Voltage: 1V d

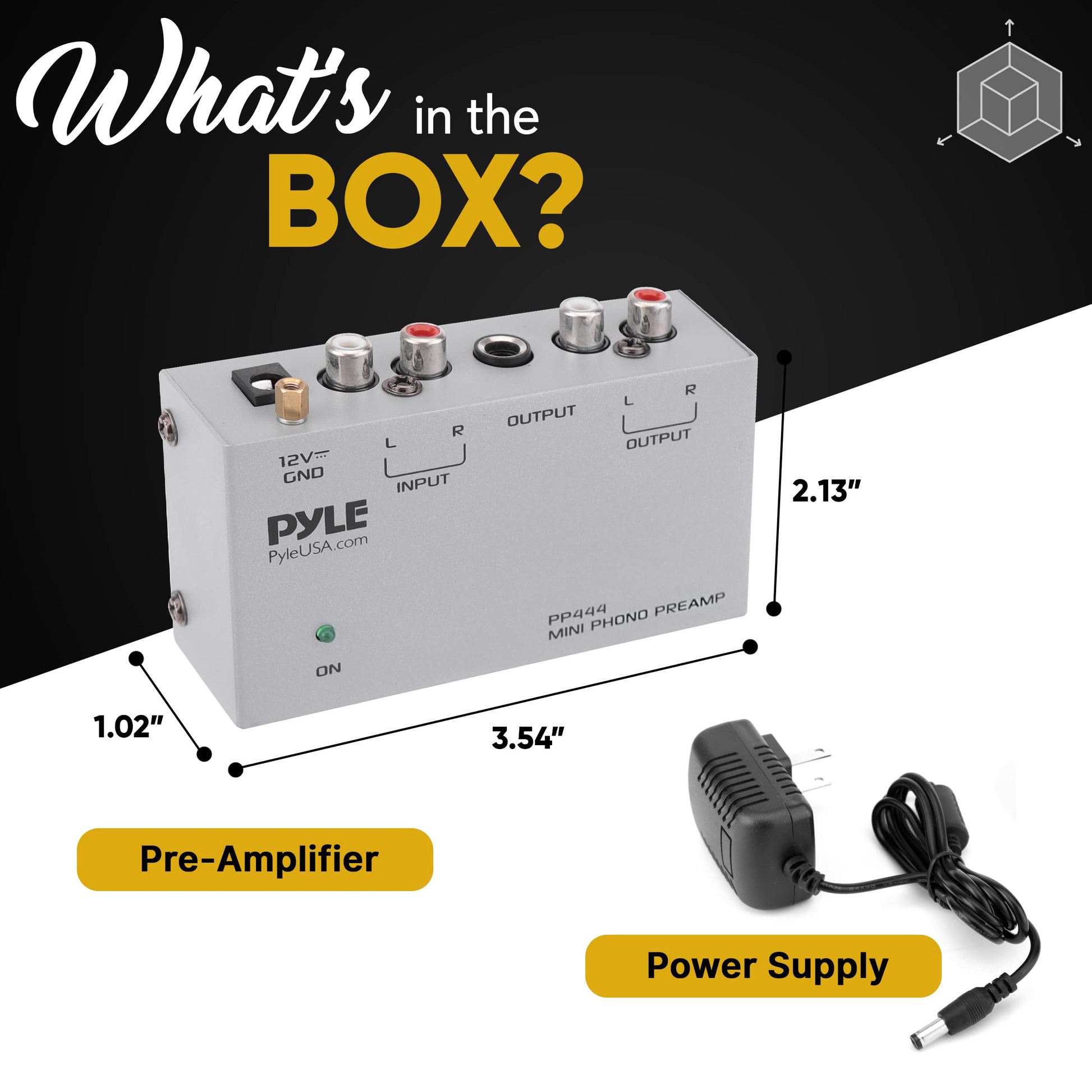

Dimensions (W x H x D): 3.54 x 2.13" x 1.02""
